Automatic Tube Filling Machine

Automatic tube filling machine is a type of industrial equipment designed to fill tubes with various products, such as creams, gels, ointments, pastes, and other similar substances. These machines are widely used in industries such as pharmaceuticals, cosmetics, food, and chemicals. Usually the automatic tube filling machine only needs to place the tubes into the tube feeding bin in batches, and the machine can automatically complete the rest of the filling, sealing and other operations. (Semi-automatic tube filling machines require manual placement of the tube into the tube holder).

In addition automatic tube filling machines are usually integrated with a tube sealing station (i.e. tube filling and sealing machine). So the tube sealing station can be seen in all of the automatic tube filling machine videos shown below.

The Main Components of Automatic Tube Filling Machine

Tube Feeding System: Automatically feeds the empty tubes into the machine.

Filling Station: Dispenses the product into the tubes. The quantity can be adjusted as per the requirement.

Sealing Station: Seals the filled tubes. The type of sealing (heat sealing, ultrasonic sealing, or crimping) depends on the material of the tubes (plastic, laminate, or metal).

Coding/Printing Station: Adds batch numbers, expiry dates, and other information onto the tubes.

Trimming Station: Trims excess material from the sealed end of the tubes to ensure a neat finish.

Discharge System: Ejects the filled and sealed tubes for packaging.

The following will show you a typical working video of the automatic tube filling machine.

Automatic Ultrasonic Plastic Tube Filling And Sealing Machine

This soft tube filling sealing machine is designed for filling thick liquid / paste into soft tube and sealing them, extra coding function can be realized. This ultrasonic filling sealing machine is suitable for hand cream, toothpaste, facial cleanser in cosmetics and daily chemical industries.

▶ Suitable for fluid liquid or paste like cream, shampoo, body lotion, etc.
▶ The tube holder can be customized according to tube size.
▶ Can realize filling, ultrasonic sealing, date coding and trimming at one machine.

Model: VK-TFS-009U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 20-30 tubes/min

Automatic Aluminum Tube Filling And Crimping Machine

An aluminum tube filling and sealing machine is a piece of equipment used in the packaging industry for filling and sealing aluminum tubes. The machine is designed to automatically fill the aluminum tubes with products such as ointments, creams, gels, pastes, and other viscous products.

▶ Suitable for filling liquid or paste into aluminum tube like hair dye, ointment, shaving cream, coating etc.
▶ The folding width at the sealing can be adjusted according to production need
▶ Can realize filling, aluminum tube sealing, date coding at one machine

Model: VK-TFS-009A
Applicable Tube Materials: Aluminum tubes, metal tubes
Speed: 30-60 tubes/min

Automatic Soft Tube Filler Sealer Machine(Hot Air Sealing)

Automatic tube filling and sealing machine VK-TFS-009H is used for filling of polyethylene (PE), polypropylene (PP) and laminated (incl. Polyfoil) tubes with gels, creams or other fluids, sealing them with hot air, stamping date and / or batch No. and cutting excess plastic on the tube ending, which arises during the tube sealing.

The empty cosmetic tubes are loaded automatically. Subsequently, they are positioned, filled and sealed. The date or batch number is stamped on the seal. The tube filling and sealing machine removes end-products automatically.

The automatic tube filler VK-TFS-009H is used for packing of cosmetics, pharmaceuticals, dental care products, animal care products, chemicals and food products into tubes. The tube filling device is designed to handle large and medium size batches / production lots / jobs.

Model: VK-TFS-009H
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 30-80 tubes/min

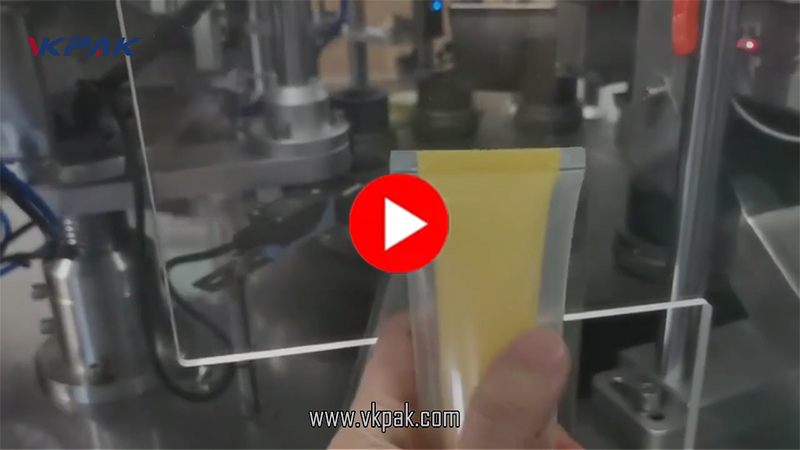

Automatic Dual-Chamber Tube Filler Sealer Machine

This VK-TFS-009UDC can automatically process dual chamber tube feeding, auto rotate to fill outer tube, registration mark identifying, filling inner tube, sealing, end trimming, tube out feeding. The machine is fully automatic and can save labor cost and lower production cost as well as provide possibility of creative two formulas products.

Model: VK-TFS-009UDC
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 10-13 tubes/min

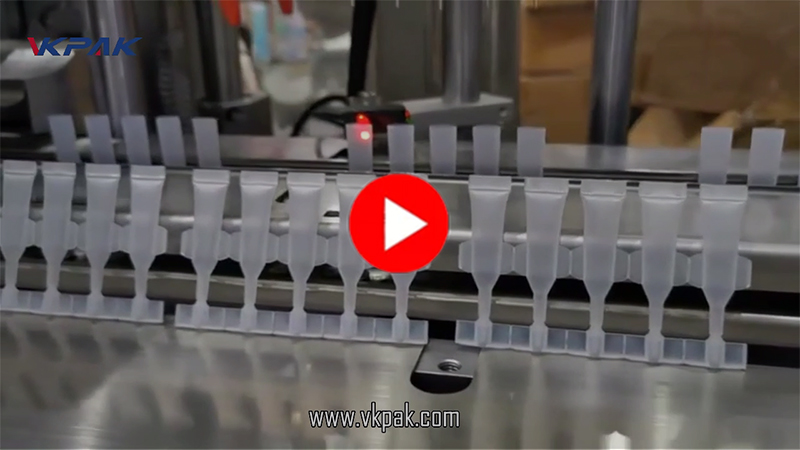

Automatic Strip Monodose Tube Filler Sealer Machine

A monodose strips filling and sealing machine is a piece of equipment designed to automate the process of filling individual doses of a product into monodose strips and subsequently sealing them. These machines are commonly used in industries such as cosmetics, and personal care to efficiently produce unit-dose packaging.

▶ Equipped with ceramic pump, this filling sealing machine is suitable for small filling volume, and it has high filling accuracy.
▶ Adopts PLC touch screen control panel, working data can be adjusted more convenient and intuitively
▶ Can feed single dose strips, fill fluid , seal single dose strips at the same time, it has compact machine body which will save working space
▶ It is suitable for packaging cosmetic serum, liquid gel, eyedrops, nasal solution

Model: VK-TFS-005U
Applicable Tube Materials: Strip monodose tubes
Speed: 15-20 tubes/min

The videos of 5 typical automatic tube filling machines shown above include the automatic filling and sealing process of plastic tubes, laminated tubes, aluminum tubes, dual-chamber tubes, and strip monodose tubes. The application range of automatic hose filling machine is as follows:

Pharmaceuticals: Filling medicinal creams, ointments, and gels.

Cosmetics: Filling beauty products like creams, lotions, and hair gels.

Food Industry: Filling food pastes like sauces, creams, and other semi-solid food products.

Chemicals: Filling adhesives, sealants, and other chemical products.

If you are looking for automatic tube filling machine, please contact us and we will choose the most suitable equipment for your packaging needs!
