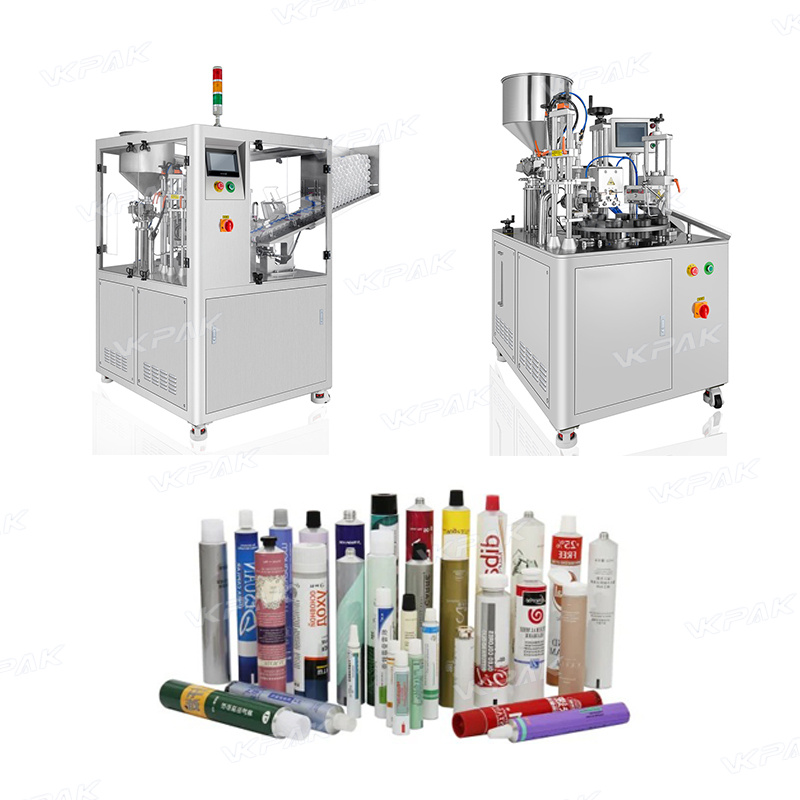

A collapsible tube filling machine is a specialized piece of equipment used in various industries to fill and seal collapsible tubes with products. These tubes are commonly made from materials like aluminum, plastic, or laminate and are used for packaging products such as ointments, creams, gels, toothpaste, and other semi-solid substances. Some advantages of collapsible tubes are their ability to keep their shape, while easily dispensing product. They are light and space efficient, making them easy to transport and store.
The Main Components of Collapsible Tube Filler Sealer Machine
Hopper: The hopper holds the product to be filled into the tubes. It often includes mechanisms to keep the product agitated and maintain its consistency.
Tube Feeding Mechanism: Tubes are loaded into the machine, either manually or automatically. The machine then orients and positions them correctly for filling.
Filling Station: This is where the product is dispensed into the tubes. The machine can be equipped with nozzles designed to ensure precise and clean filling without spillage.
Sealing Station: After filling, the open end of the tube is sealed. The method of sealing can vary:
1. Heat Sealing: Common for plastic and laminate tubes.
2. Crimping: Used for aluminum tubes, where the end is folded and crimped to seal it.
3. Ultrasonic Sealing: Another method used for plastic tubes, where ultrasonic waves create a strong seal.
Cutting/Trimming: Excess material may be trimmed off after sealing to ensure a neat and professional finish.
Date/Batch Coding: Some machines include the capability to print batch numbers, expiry dates, or other information on the sealed end of the tube.
The following will show you a typical working video of the collapsible tube filling machine.

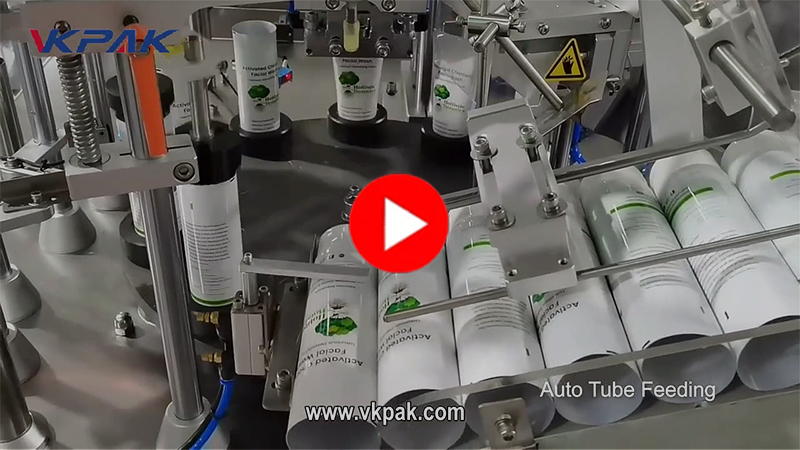

Automatic Ultrasonic Collapsible Plastic Tube Filling And Sealing Machine
This video shows the working process of filling and sealing collapsible tubes using VK-TFS-009U. This machine uses a piston pump (ceramic pump, peristaltic pump optional) for filling, and automatic frequency tracking ultrasonic technology for tube sealing. It is suitable for various collapsible plastic tubes or laminated tubes.
Model: VK-TFS-009U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 20-30 tubes/min
VK-TFS-009U Automatic Ultrasonic Filling And Sealing Machine Ultrasonic tube filling and sealing machine uses intelligent digital ultrasonic technology to enable molecules on the surface area of the tubes to be fused together by ultrasonic friction. Intelligent digital ultrasonic welding avoids the disadvantages that weak welding causes due...

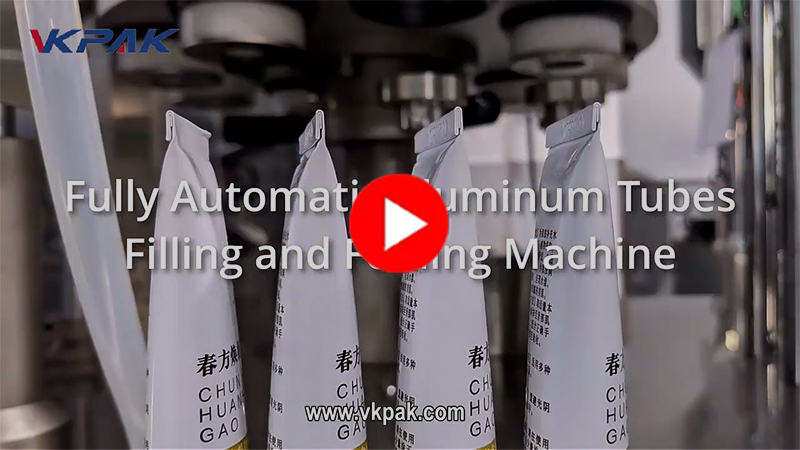

Automatic Collapsible Aluminum Tube Filling And Crimping Machine
This video shows the working process of filling and sealing collapsible tubes using VK-TFS-009A. This machine uses a piston pump (ceramic pump, peristaltic pump optional) for filling, and automatic folding crimping. It is suitable for various foldable aluminum tubes or metal tubes.
Model: VK-TFS-009A
Applicable Tube Materials: Aluminum tubes, metal tubes
Speed: 30-60 tubes/min
VK-TFS-009A Automatic Metal Tube Filling And Crimping Machine Automatic tube filling machines are designed and engineered to produce outstanding quality and precision tube filling and sealing of aluminum tubes or metal tubes with the output of up to 80 tubes per minute. It is widely used in...

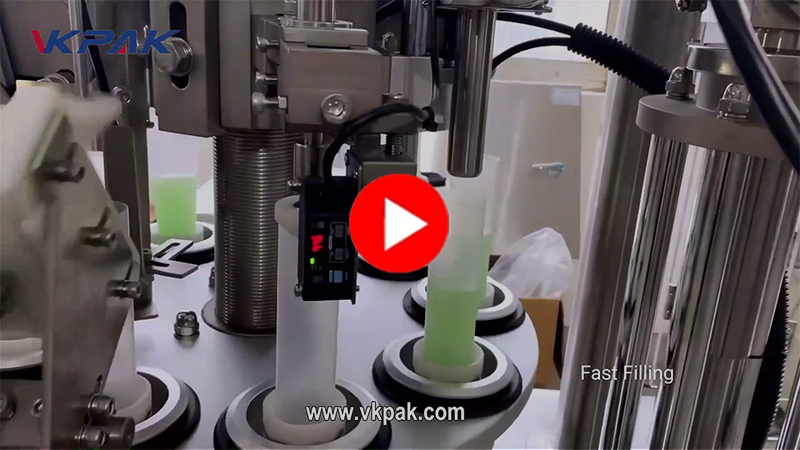

Automatic Collapsible Plastic Tube Filler Sealer Machine(Hot Air Sealing)
This video shows the working process of filling and sealing collapsible tubes using VK-TFS-009H. The VK-TFS-009H is designed for filling and sealing plastic tubes, composite tubes, and aluminum-plastic tubes. It boasts a production speed of 30-80 tubes per minute, a filling range of 3-250 ml per tube, and a filling accuracy of ≤±1%. The machine features a compact structure, compliance with pharmaceutical machinery industry standards, and components made of high-quality materials like stainless steel and 316L stainless steel. It is suitable for industries such as pharmaceuticals, food, and daily chemicals.
Model: VK-TFS-009H
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 30-80 tubes/min
VK-TFS-009H Automatic Plastic Tube Filler Sealer Machine The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high-efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed,no damage...

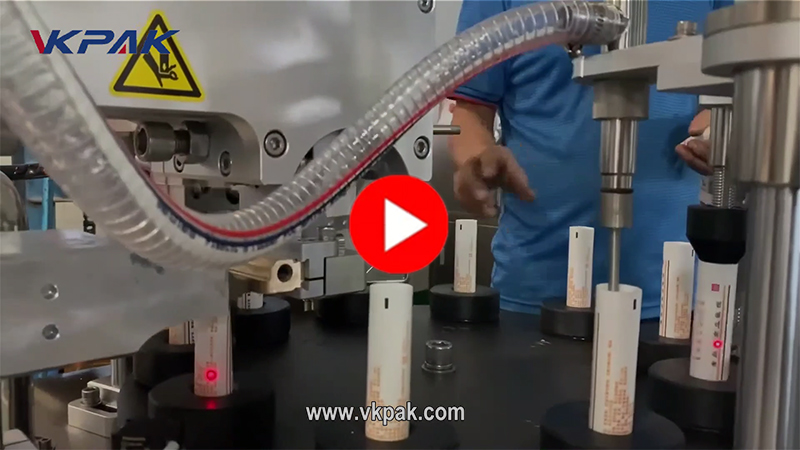

Semi-Automatic Ultrasonic Filler Sealer Machine For Collapsible Tubes
This video shows the working process of filling and sealing collapsible tubes using VK-TFS-006U. The semi auto ultrasonic tube filling sealing machine is an advanced device designed for seamless operation in the domain of tube sealing. It leverages ultrasonic technology and has a rapid melt adhesive effect for efficient and strong seals on plastic and aluminum plastic tubes. Key features include automatic tube orientation, filling, sealing, date printing, trimming, and tubes output. It has a sealing diameter of 5-50mm, with a production capacity of 20-25 tubes/min.
Model: VK-TFS-006U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 20-25 tubes/min
VK-TFS-006U Semi-Automatic Ultrasonic Filler Sealer Machine The VK-TFS-006U is linked with ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear and include radii or small...

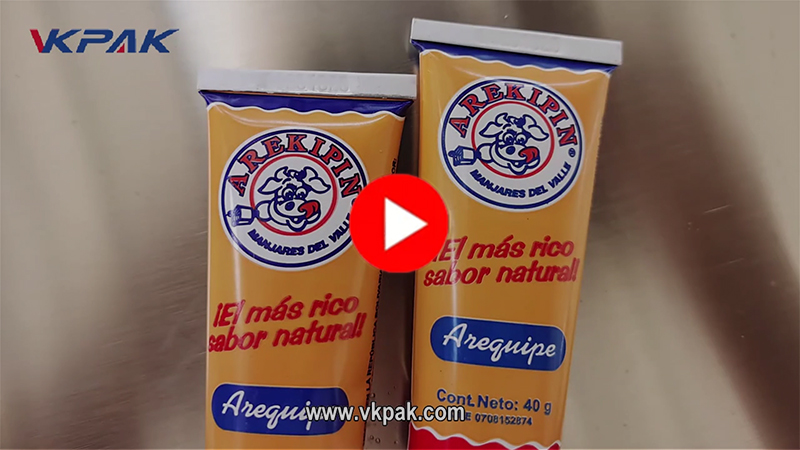

Semi-Automatic Collapsible Metal Tubes Filler Sealer
This video shows the working process of filling and sealing collapsible tubes using VK-TFS-006A. Semi automatic aluminum tube filling and sealing machine is used for packing cosmetics, pharmaceuticals, chemicals, and food products into metal tubes. Manually put the metal tubes into the tube-holding base. Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, then filling system starts to fill the tube with fixed quantity. The tube is sealed by cam, which is steady, safe and with no air leaving. It can also achieve number/batch printed on the end, finally the tube is ejected.
Model: VK-TFS-006A
Applicable Tube Materials: Aluminum tubes, metal tubes
Speed: 20-50 tubes/min
VK-TFS-006A Semi-Automatic Aluminum Tube Filler Sealer Machine Semi-automatic aluminum tube filling and sealing machine is suitable for metal tubes . It can do automatic color mark position, filling, folding, batch coding and finished products exit in one machine. Equipped with a auto rotary table with 16 working...

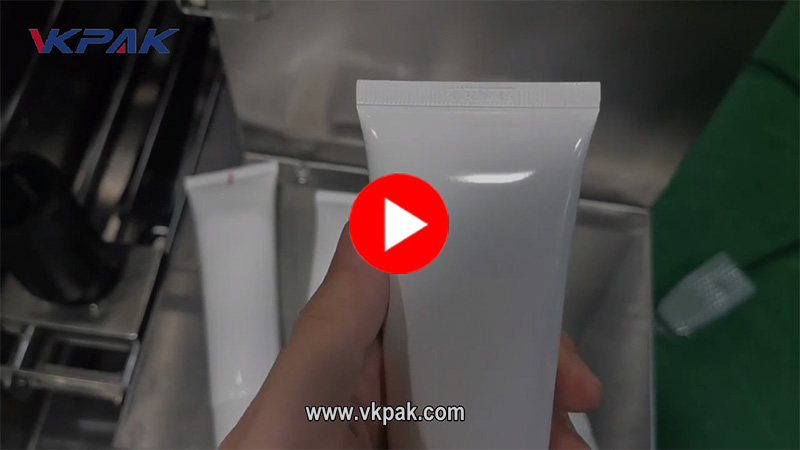

Economical Collapsible Tube Filling Sealing Machine
This video shows the working process of filling and sealing collapsible tubes using VK-TFS-002U. This semi automatic machine is suitable for filling liquid or paste into soft tubes and sealing tubes.The fixing mold of this machine can be customized according to tube size.It is also equipped with coding function which can be used to print production date on soft tube.This machine is widely used in daily chemical,cosmetics industries.
Model: VK-TFS-002U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 8-12 tubes/min
VK-TFS-002U Semi Automatic Ultrasonic Tube Filler And Sealer Machine This semi automatic machine is suitable for filling liquid or paste into soft tubes and sealing tubes. The fixing mold of this machine can be customized according to tube size. It is also equipped with coding function which...
Collapsible tube filling machines are vital for efficiently and precisely packaging products in collapsible tubes, offering significant advantages in terms of speed, hygiene, and quality control across various industries. Usually the collapsible tube filling machine will integrate a tube sealing station and a tube cutting station. The above shows 6 typical videos of the collapsible tube filling and sealing machine provided by VKPAK to customers. If you are looking for collapsible tube filling equipment, please contact us and our experienced packaging equipment experts will recommend the right equipment for you.
You May Like

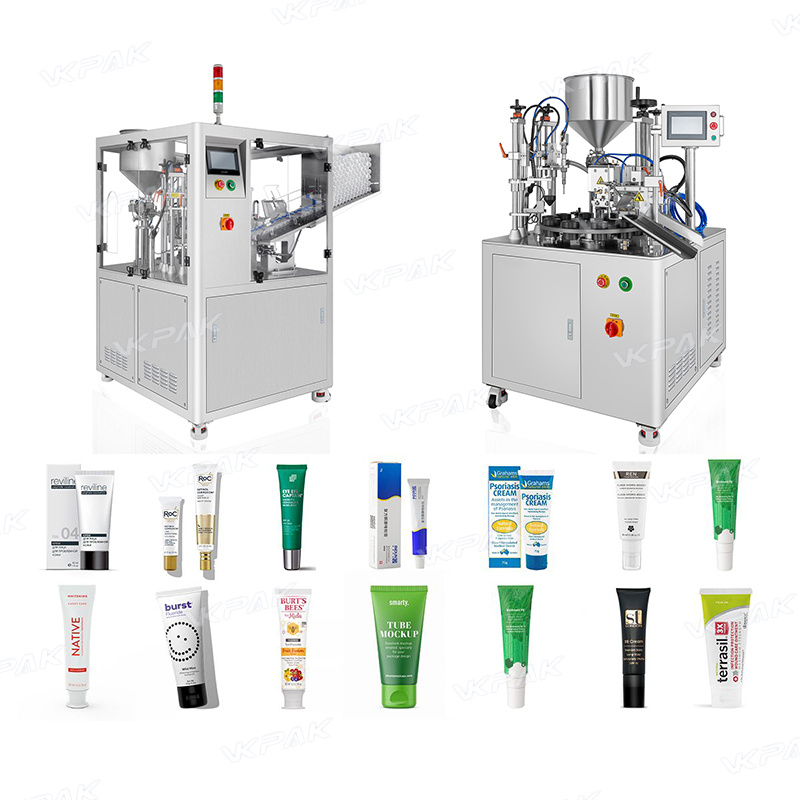

Cosmetic tube filling machine is a piece of packaging equipment that uses sensors and precision mechanisms to fill and seal tubes of cosmetic products like creams, lotions, gels, and pastes with the exact amount of product. These machines are designed to be accurate, versatile, and easy to use, and can help improve product quality and consistency while reducing labor costs....

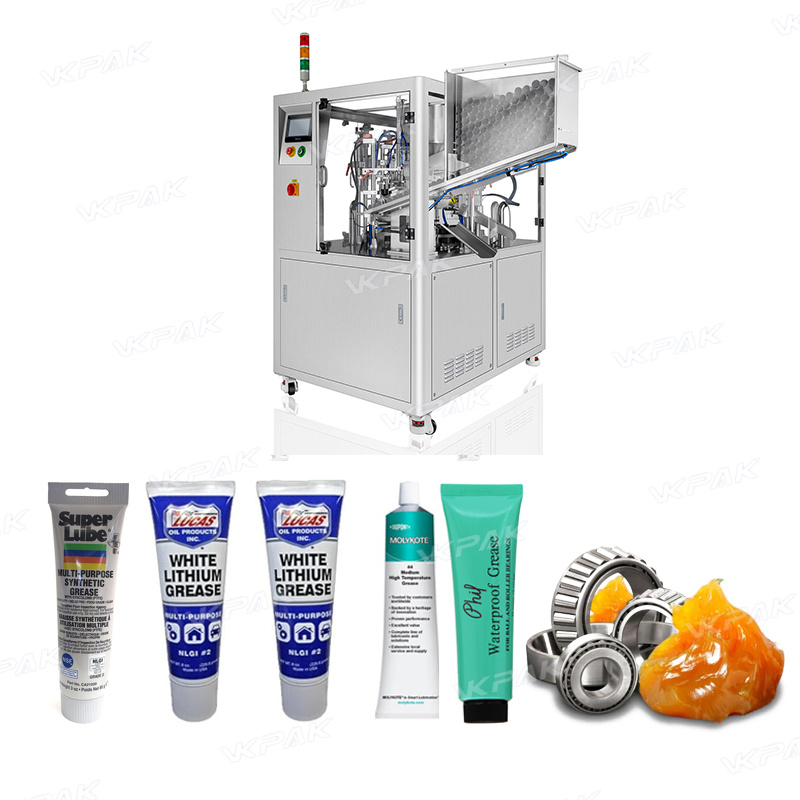

Grease tube filling machine is specialized equipment designed to fill tubes with grease, typically used in industrial, automotive, and mechanical applications. These machines automate the process of dispensing grease into various types of tubes, ensuring consistent filling, sealing, and packaging. The difficulty of the grease tube filling machine is that the grease usually has a high viscosity and poor fluidity,...

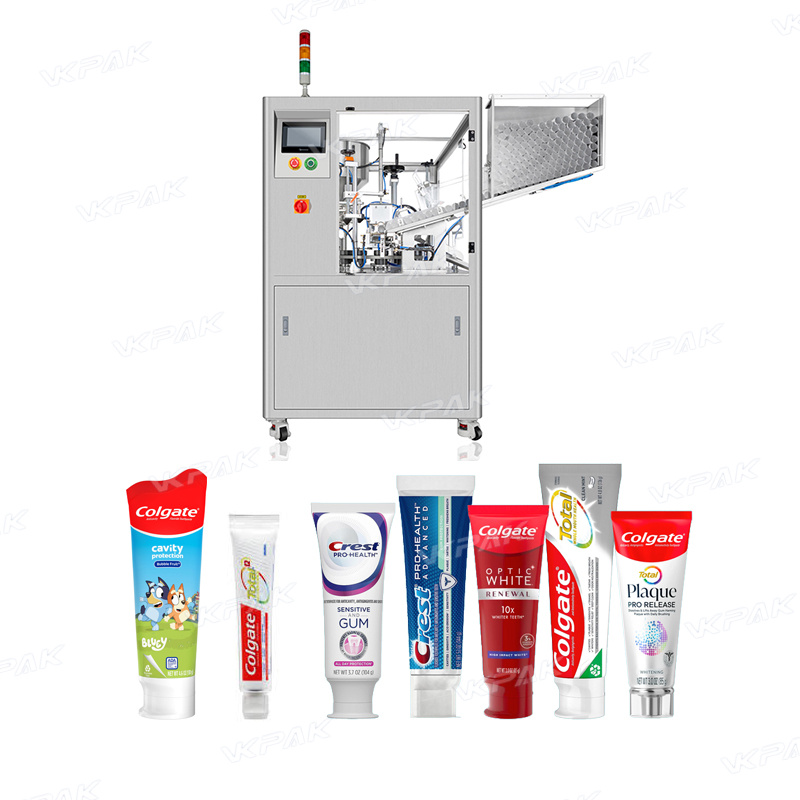

The toothpaste filling machine is a specialized piece of equipment designed for the efficient and precise filling of toothpaste into tubes. Ideal for large-scale production, it ensures consistency, hygiene, and speed in the packaging process. Featuring automated controls and adjustable settings, these machine can handle various tube sizes and viscosities, minimizing waste and maximizing productivity. Perfect for toothpaste manufacturers seeking...

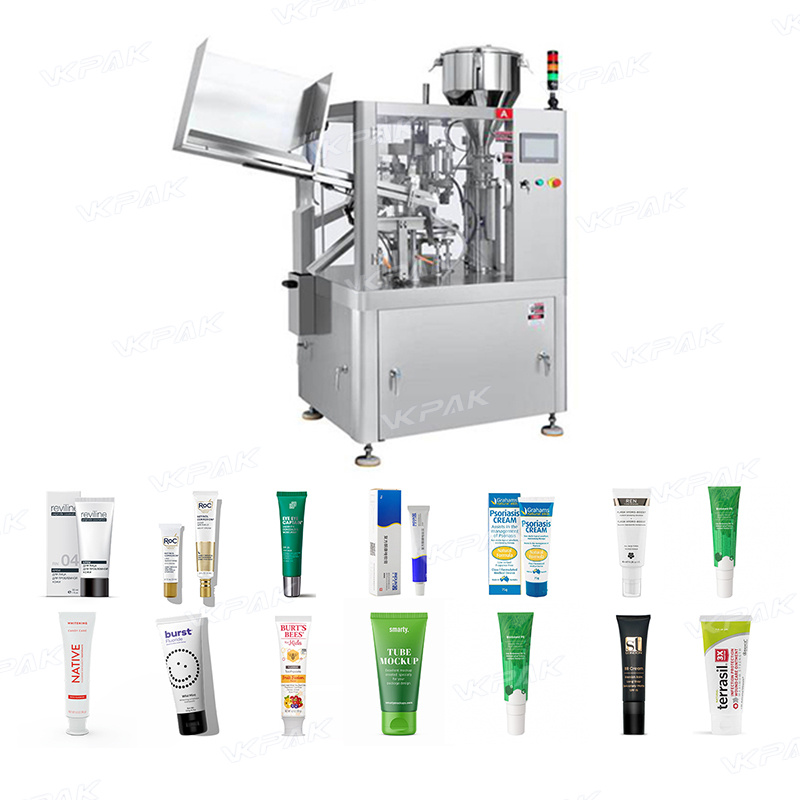

An ointment filling machine is a specialized piece of equipment used in the pharmaceutical and cosmetic industries to fill ointment products into various containers such as tubes, jars, and bottles. These machines are designed to handle viscous substances and ensure accurate and hygienic filling of ointments, creams, gels, and pastes. Ointment filling machine also includes filling equipment for bottles, jars....

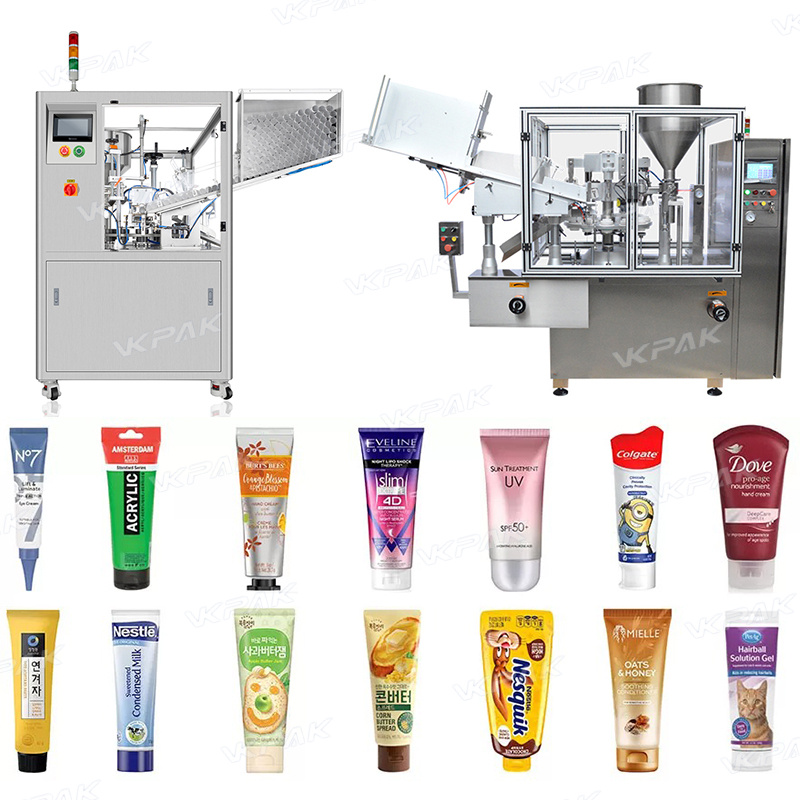

Automatic tube filling machine is a type of industrial equipment designed to fill tubes with various products, such as creams, gels, ointments, pastes, and other similar substances. These machines are widely used in industries such as pharmaceuticals, cosmetics, food, and chemicals. Usually the automatic tube filling machine only needs to place the tubes into the tube feeding bin in batches,...
