Cream Tube Filling Machine

Cream usually refers to a dairy food, and is also the name of most topical substances (cosmetics or medicines), such as:

Cream (pharmacy), a preparation applied to a body surface
Cold cream, a substance to smooth skin and remove make-up
The cream, a testosterone-based ointment used to mask steroid use
Aqueous cream, a light, hydrocarbon-based emulsion
Anti-aging cream
Barrier cream
CC cream

Here we are discussing the tube filling equipment for cream, mostly referring to topical creams. Cream tube filling machine is a specialized piece of equipment used in the pharmaceutical, cosmetic, and food industries to fill tubes with various creams, ointments, gels, and pastes. These machines are designed to ensure accurate, efficient, and hygienic filling of products into tubes, which are then sealed and prepared for distribution.

Key Features and Components:

Filling System: The core component that dispenses the precise amount of product into each tube. This system can be adjusted for different viscosities and volumes.

Tube Holder and Feeder: Holds the empty tubes and automatically feeds them into the filling position. Some machines have rotating tables or linear feeding systems.

Product Hopper: Holds the cream or gel before it is dispensed into the tubes. It may include agitation or heating systems to maintain product consistency.

Nozzle System: Dispenses the product into the tubes. The nozzles are designed to minimize waste and ensure clean filling.

Sealing Mechanism: Seals the open end of the tube after filling. Depending on the type of tube (metal, plastic, or laminate), the sealing method may vary (e.g., heat sealing, ultrasonic sealing, or crimping).

Trimming and Coding: Some machines trim the excess material from the sealed end and print batch numbers, expiry dates, or other information on the tubes.

Control Panel: Allows operators to set parameters, monitor the process, and make adjustments. Modern machines often have touch screens and programmable logic controllers (PLCs) for precise control.

Below we will list the working video of the cream tube filling and sealing machine.

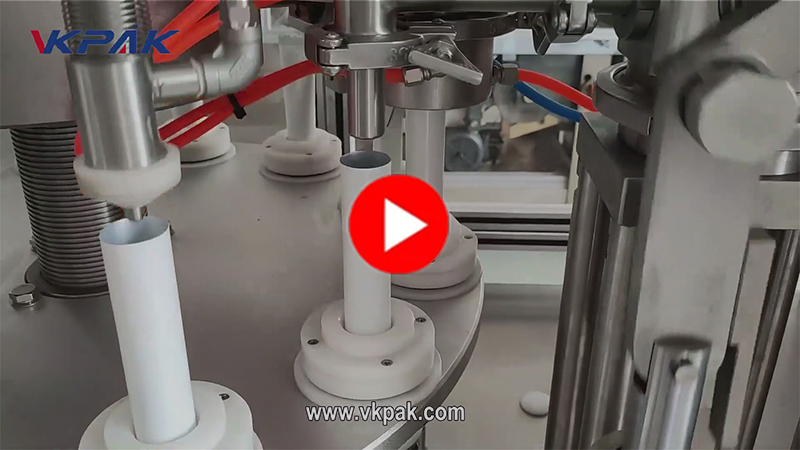

Automatic Cream Tube Filling Sealing Machine(Hot Air Sealing)

This video shows the working video of the cosmetic cream tube filling and sealing machine, which adopts piston filling (suitable for filling various liquids and pastes) and hot air sealing (internal heating, fast speed, 60 tubes per minute). The plastic tube filling and sealing machine is a piece of equipment used in the packaging industry to fill plastic tubes with various substances, such as creams, gels, ointments, or pastes, and seal them for retail sale or distribution. These machines are commonly used in industries like cosmetics, pharmaceuticals, food, and household products.

Model: VK-TFS-009H
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 40-60 tubes/min

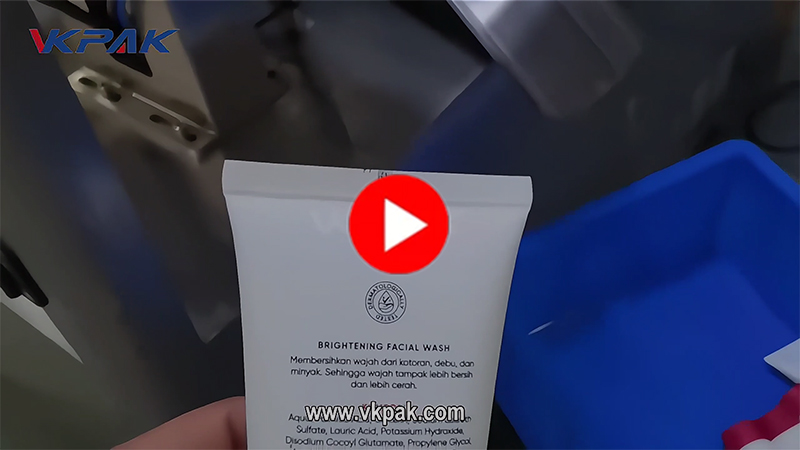

Automatic Face Wash Cream Tube Filling Sealing Machine(Ultrasonic Sealing)

This video shows the working video of the cosmetic cream tube filling and sealing machine. Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%. Machine could automatically finish tube feeding, registration mark identifying, filling, sealing with coding, end trimming, tube out feeding, fully automatic, save labor cost and lower production cost.

Model: VK-TFS-009U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 22-30 tubes/min

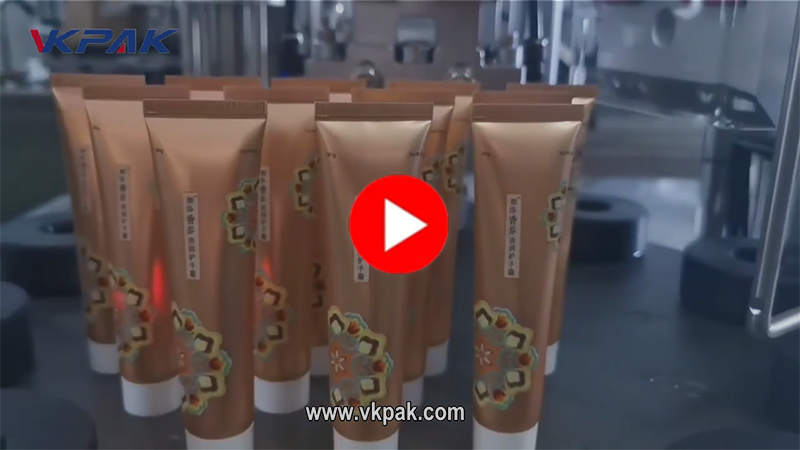

Semi Automatic Hand Cream Tube Filling And Sealing Machine

This video shows the working video of the semi automatic hand cream tube filling and sealing machine. Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%. Manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.

Model: VK-TFS-006U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 18-22 tubes/min

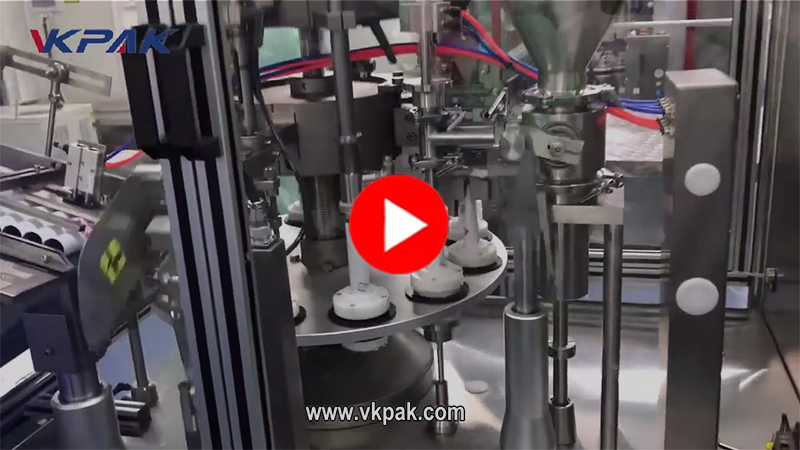

Automatic Cream Aluminium Tube Filling And Sealing Machine

This video shows the working video of the aluminium tube filling and sealing machine for cream. The aluminum tube filling and sealing machine is an industrial equipment used to fill aluminum tubes with various substances such as creams, ointments, gels, adhesives, or other viscous materials, and then seal them securely. These machines are commonly used in industries such as pharmaceuticals, cosmetics, food, and chemicals.

Model: VK-TFS-009A
Applicable Tube Materials: Aluminum tubes, metal tubes
Speed: 40-60 tubes/min

Cream tube filling machine is a critical component in the production lines of many industries, ensuring products are filled accurately and efficiently while maintaining high hygiene standards. The above shows the working videos of 4 typical equipments of cream tube filling and sealing machines. VKPAK can provide you with various cream tube filling machines from semi-automatic to fully automatic, from plastic tubes to aluminum tubes, from ultrasonic sealing to hot air sealing. If you are looking for cream tube filling machine, please contact us.
