An ointment filling machine is a specialized piece of equipment used in the pharmaceutical and cosmetic industries to fill ointment products into various containers such as tubes, jars, and bottles. These machines are designed to handle viscous substances and ensure accurate and hygienic filling of ointments, creams, gels, and pastes.
Ointment filling machine also includes filling equipment for bottles, jars. Since ointments are mostly packaged in tubes, on this page we mainly show ointment tube filling equipment.
The Main Components of Ointment Filling Machine
Hopper:The hopper is a container that holds the bulk ointment before it is dispensed. It ensures a continuous supply of the product to the filling mechanism. Hoppers often come with heating and stirring capabilities to maintain the consistency and flow of the ointment.
Filling Nozzle:
The filling nozzle is responsible for dispensing the ointment into containers. The design and size of the nozzle can vary depending on the type and size of the container being filled. It is designed to minimize wastage and prevent dripping.
Pump System:
The pump system, which can be either a piston pump, peristaltic pump, or rotary valve pump, controls the amount of ointment dispensed. It ensures accurate and consistent filling volumes, critical for maintaining product quality and compliance with industry standards.
Sealing Mechanism:
After filling, the sealing mechanism (which can include tube sealing for collapsible tubes or capping for jars and bottles) ensures the container is properly sealed to prevent contamination and leakage.
Product Feed System:
This system ensures that the ointment is consistently fed from the hopper to the filling mechanism. It may include agitators or stirrers to keep the product homogeneous and free-flowing.
The following will show you a typical working video of the ointment tube filling machine.

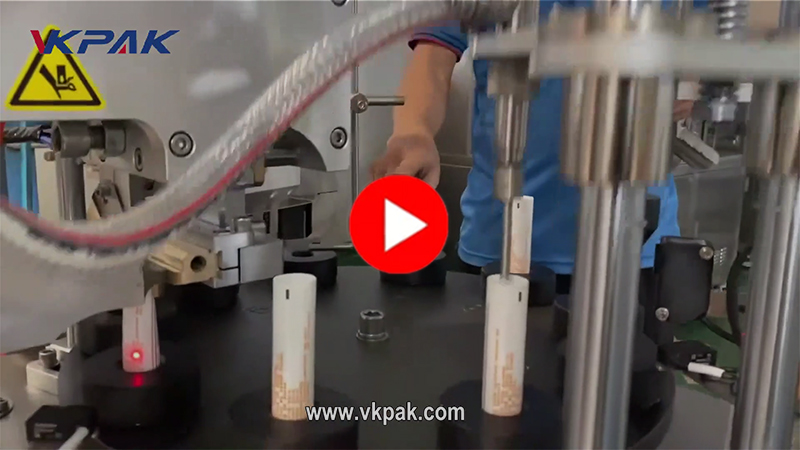

Semi Automatic Plastic Ointment Tube Filling Machine
This video shows the working process of semi-automatic ointment filling machine. The filling station is equipped by default with a piston pump for precise dispensing of the ointment into the tube (the filling pump can be changed according to the characteristics of the ointment). The sealing station is equipped with ultrasonic sealing technology which is plug-and-play without waiting.
Manually tube feeding, automatic registration mark identifying, filling, sealing with coding, end trimming, tube out feeding.
Model: VK-TFS-006U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 18-22 tubes/min
VK-TFS-006U Semi-Automatic Ultrasonic Filler Sealer Machine The VK-TFS-006U is linked with ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear and include radii or small...

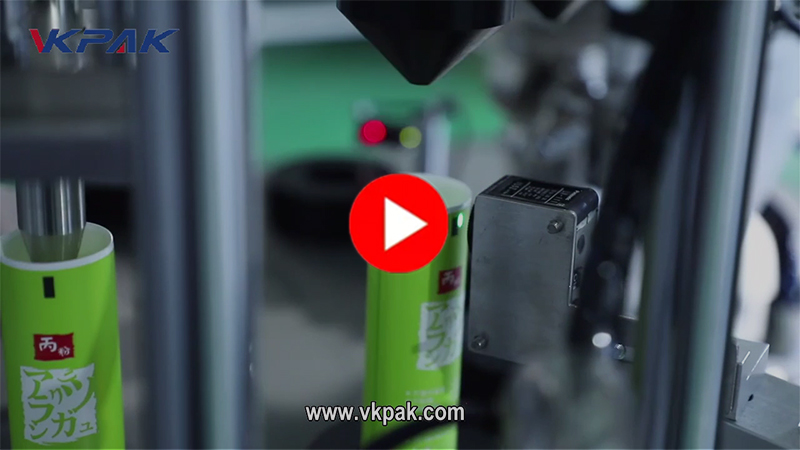

Automatic Ointment Tube Filling Machine
This video shows the working process of automatic ointment filling and sealing machine. Equipped with a tube loading station and pick and place station, the machine efficiently transfers tubes to the tube orient station where color-coded identification ensures accurate positioning. The filling station features a piston pump and material hopper, while the sealing station uses ultrasonic technology to cut and code each tube with a unique production date. Then the pneumatic trim station is where the top of the tube is trimmed to create a clean and professional finish. Finally, the unload station releases finished tubes from the star wheel. Save time and increase productivity with our reliable and user-friendly machine.
Model: VK-TFS-009U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 20-28 tubes/min
VK-TFS-009U Automatic Ultrasonic Filling And Sealing Machine Ultrasonic tube filling and sealing machine uses intelligent digital ultrasonic technology to enable molecules on the surface area of the tubes to be fused together by ultrasonic friction. Intelligent digital ultrasonic welding avoids the disadvantages that weak welding causes due...

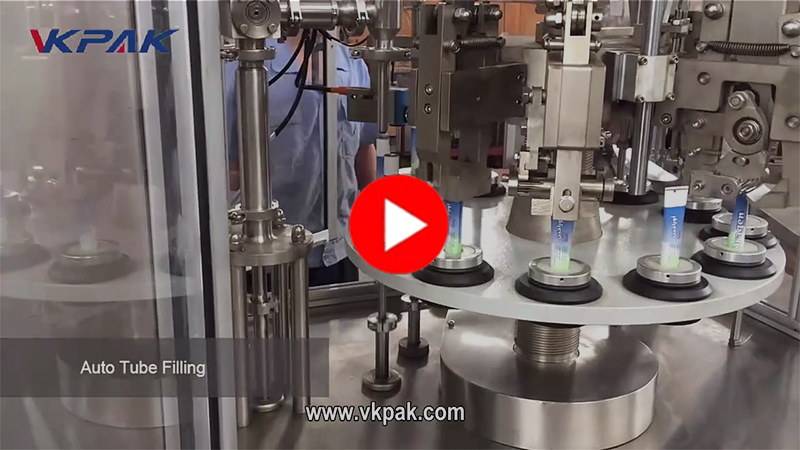

Automatic Aluminum Ointment Tube Filler Sealer Machine
VK-TFS-009A is a specialized piece of equipment used in the pharmaceutical, cosmetic, and personal care industries for the efficient filling and sealing of aluminum tubes with ointments, creams, gels, and other semi-solid products. This type of machine automates the process, ensuring high precision, hygiene, and production speed.
Model: VK-TFS-009A
Applicable Tube Materials: Aluminum tubes, metal tubes
Speed: 30-60 tubes/min
VK-TFS-009A Automatic Metal Tube Filling And Crimping Machine Automatic tube filling machines are designed and engineered to produce outstanding quality and precision tube filling and sealing of aluminum tubes or metal tubes with the output of up to 80 tubes per minute. It is widely used in...

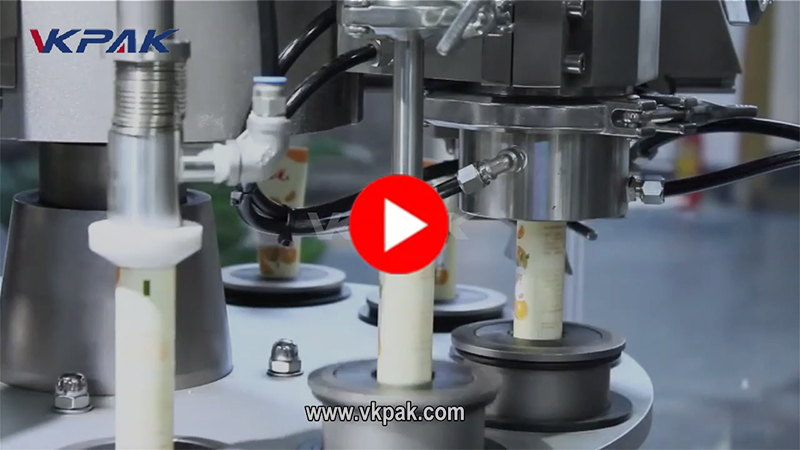

Automatic Hot Air Tube Filler Sealer Machine For Ointment
VK-TFS-009H is a highly specialized piece of equipment designed to fill and seal tubes, especially plastic and laminated ones, with semi-solid products like ointments, creams, gels, and pastes. This machine uses hot air technology to seal the tubes after they have been filled, ensuring a tight, reliable closure. It is widely used in the pharmaceutical, cosmetic, and personal care industries due to its efficiency and ability to maintain high hygiene standards.
Model: VK-TFS-009H
Applicable Tube Materials: Plastic tubes, laminated tubes
Speed: 30-60 tubes/min
VK-TFS-009H Automatic Plastic Tube Filler Sealer Machine The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high-efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed,no damage...

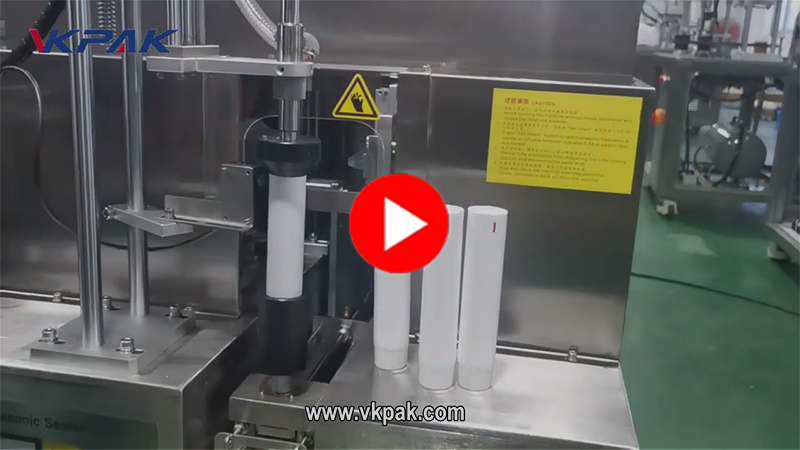

Economical Ointment Filling And Sealing Machine
An economical ointment filling and sealing machine is designed to provide reliable and efficient filling and sealing of ointments, creams, gels, and other semi-solid products into tubes or other containers, at a lower cost compared to high-end, fully automated machines. These machines are ideal for small to medium-sized enterprises (SMEs) or for those with budget constraints but still require consistent and quality packaging solutions.
Model: VK-TFS-002U
Applicable Tube Materials: Plastic tubes, laminated tubes
Speed: 6-12 tubes/min
VK-TFS-002U Semi Automatic Ultrasonic Tube Filler And Sealer Machine This semi automatic machine is suitable for filling liquid or paste into soft tubes and sealing tubes. The fixing mold of this machine can be customized according to tube size. It is also equipped with coding function which...
Above shows a working video of 5 typical ointment filling machines. From semi-automatic to fully-automatic, from aluminum to plastic tubes, VKPAK has the right machine for you! Using an ointment tube filling machine improves efficiency, maintains high hygiene standards, and ensures product consistency, making it an essential tool in various production environments. If you are looking for an ointment filling machine, please contact us, our experienced engineers will recommend the right equipment for you according to your ointment!
We not only offer quality equipment, we listen, we adapt to your needs. We offer advice, we look for the best approach to your project. We recommend the most cost effective equipment without sacrificing quality. It is our responsibility to ensure that all our customers receive every attention to detail to make the installation successful, cost-efficient and profitable.
