The toothpaste filling machine is a specialized piece of equipment designed for the efficient and precise filling of toothpaste into tubes. Ideal for large-scale production, it ensures consistency, hygiene, and speed in the packaging process. Featuring automated controls and adjustable settings, these machine can handle various tube sizes and viscosities, minimizing waste and maximizing productivity. Perfect for toothpaste manufacturers seeking to streamline operations and maintain high-quality standards in their products.
The Main Components of Toothpaste Filling Machine
Hopper: A reservoir that holds the bulk toothpaste before it is dispensed into tubes.
Filling Mechanism: This includes pumps and nozzles that accurately measure and fill the correct amount of toothpaste into each tube.
Tube Feeding System: Automatically feeds empty tubes into the machine for filling. (Semi-automatic or manual toothpaste filling machines do not have this device)
Tube Sealing: After filling, the machine seals the tube. This can involve heat sealing or ultrasonic sealing for plastic tubes or crimping for metal tubes.
Control System: Modern machines come with programmable logic controllers (PLCs) to ensure precise control over the filling process, adjusting speed, volume, and timing as necessary.
Conveyor System: Moves the tubes through different stages of the filling and sealing process. (Most of them use star discs, and there are also round-trip types.)
The following will show you a typical working video of the toothpaste tube filling machine.

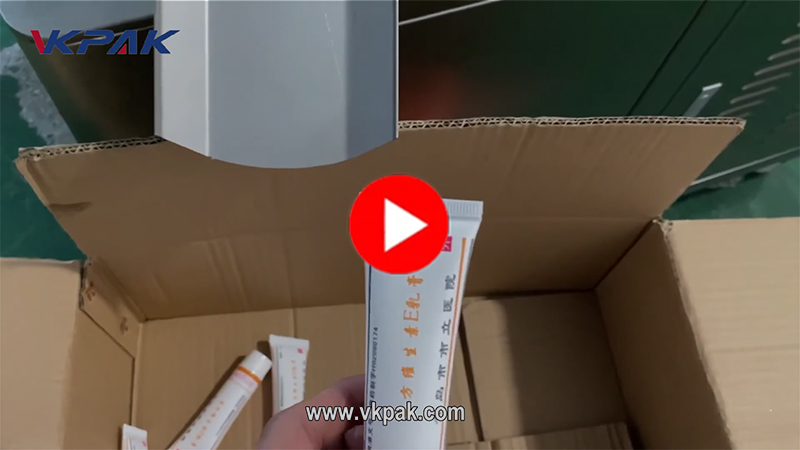

Semi Automatic Plastic Tube Filling Machine For Toothpaste
The VK-TFS-006U is a versatile and efficient solution for mid-sized production runs. Designed to fill toothpaste into plastic tubes with precision, this machine offers a balance of manual control and automated functionality. Featuring adjustable filling volumes, it ensures accurate and consistent dosing, reducing product waste. Its user-friendly interface and durable construction make it ideal for small to medium-sized businesses looking to enhance their packaging efficiency and maintain high hygiene standards. Perfect for producing professional-grade toothpaste packaging with ease.
Model: VK-TFS-006U
Applicable Tube Materials: plastic tubes, laminated tubes
Speed: 18-22 tubes/min
VK-TFS-006U Semi-Automatic Ultrasonic Filler Sealer Machine The VK-TFS-006U is linked with ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear and include radii or small...

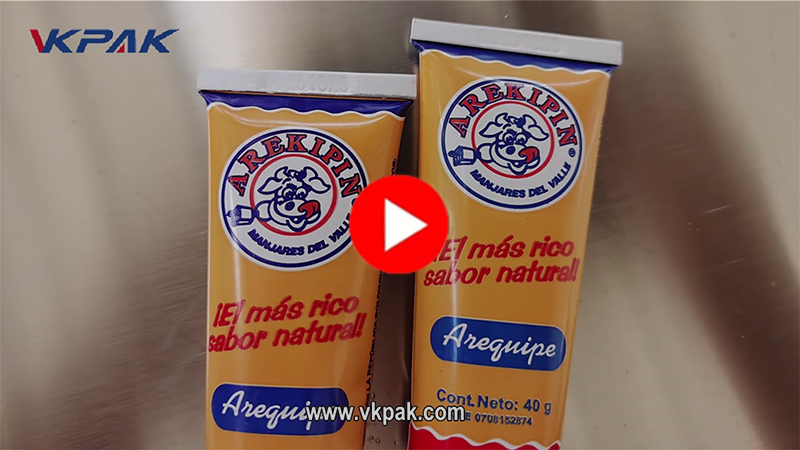

Semi Automatic Aluminum Tube Filling Machine For Toothpaste
Semi-automatic aluminum tube filling and sealing machine is suitable for metal tubes. It can do automatic color mark position, filling, folding, batch coding and finished products exit in one machine.
Equipped with a auto rotary table with 16 working stations, the operator manually put the aluminum tube into the tube holders. The machine then will automatically mark searching, filling, folding. It fills when there is a tube detected. No tube no filling, to avoid wrong filling. The filling is driven by air cylinder, and the filling capacity and accuracy is controlled by cylinder route.
Model: VK-TFS-006A
Applicable Tube Materials: Aluminum tubes, metal tubes
Speed: 25-50 tubes/min
VK-TFS-006A Semi-Automatic Aluminum Tube Filler Sealer Machine Semi-automatic aluminum tube filling and sealing machine is suitable for metal tubes . It can do automatic color mark position, filling, folding, batch coding and finished products exit in one machine. Equipped with a auto rotary table with 16 working...

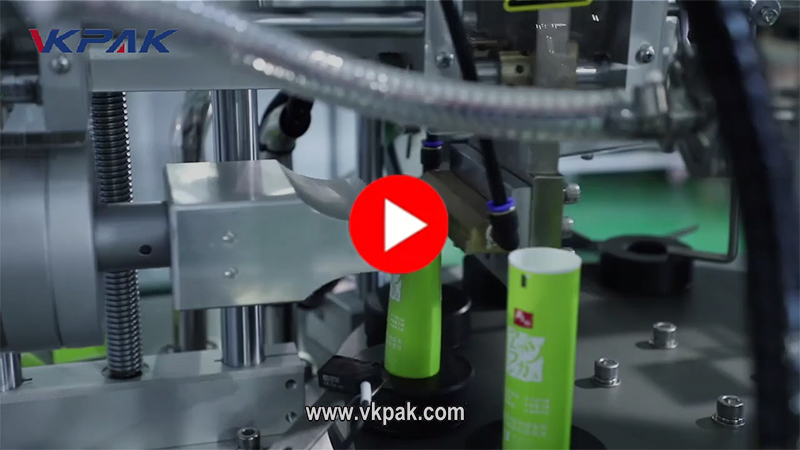

Automatic Toothpaste Tube Filling And Sealing Machine(Ultrasonic Sealing)
Ultrasonic tube filling and sealing machine uses intelligent digital ultrasonic technology to enable molecules on the surface area of the tubes to be fused together by ultrasonic friction. Intelligent digital ultrasonic welding avoids the disadvantages that weak welding causes due to foreign matter adhering to the walls. This advanced machine incorporates various stations, including a tube loading station, pick and place station, filling station, sealing station, pneumatic trim station, and unload station. With its efficient operation and reliable performance, this machine offers significant time savings and increased productivity for manufacturers in the cosmetics and personal care industries.
Model: VK-TFS-009U
Applicable Tube Materials: Plastic tubes, laminated tubes
Speed: 20-30 tubes/min
VK-TFS-009U Automatic Ultrasonic Filling And Sealing Machine Ultrasonic tube filling and sealing machine uses intelligent digital ultrasonic technology to enable molecules on the surface area of the tubes to be fused together by ultrasonic friction. Intelligent digital ultrasonic welding avoids the disadvantages that weak welding causes due...

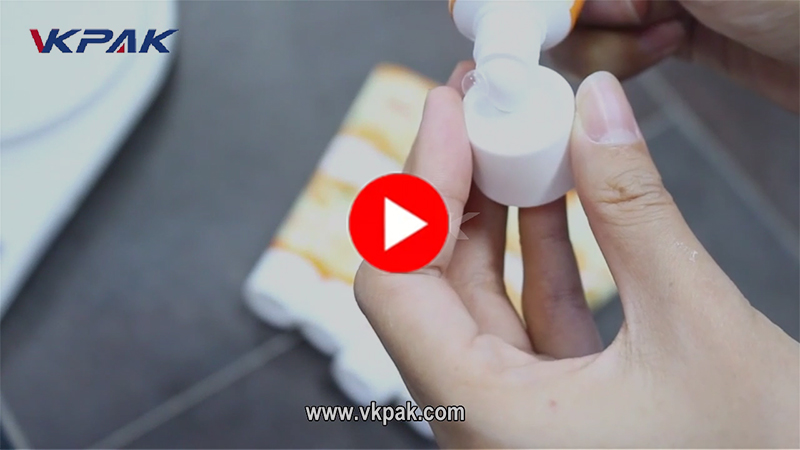

Automatic Toothpaste Tube Filling And Sealing Machine(Hot Air Sealing)
VK-TFS-009H tube filling and sealing machine feed the tube into a rotary indexing table, orients the tube then fills and seals with either heat seal and trim, or fold and crimp for metal tubes. Suitable for a wide range of applications, tube filling and sealing equipment can fill creams, lotions, food products, pharmaceuticals, greases, gels, glues, pastes. All of our automatic tube filling and sealing machines include automatic tube loading, orientation, filling, sealing, and coding for plastic or lami tubes with speed ranges from 30 to 80 tubes per minute and sizes up to 300 ml.
Model: VK-TFS-009H
Applicable Tube Materials: Plastic tubes, laminated tubes
Speed: 30-80 tubes/min
VK-TFS-009H Automatic Plastic Tube Filler Sealer Machine The machine adopts touch screen and PLC control. The automatic tube feeding, automatic positioning and imported rapid high-efficiency heater and highly stable flow meter form the hot air heating system. It has such features as firm sealing, high speed,no damage...

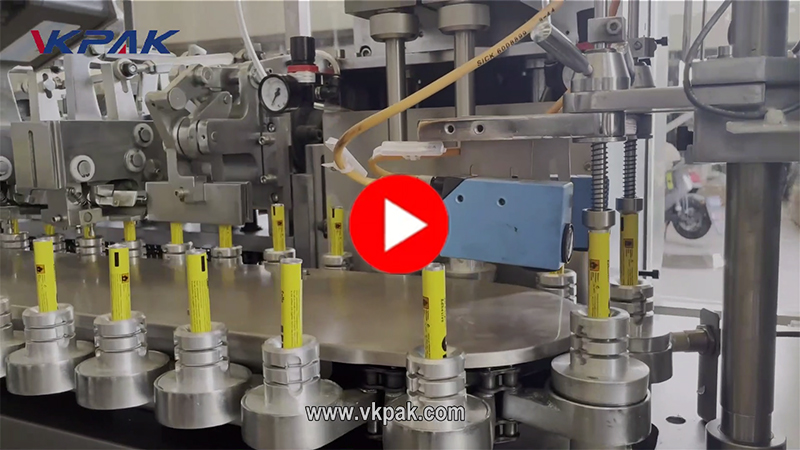

High Speed Aluminum Tube Filling And Sealing Machine For Toothpaste
This video shows the working process of a high-speed tube filling and sealing machine. VKPAK cream and ointment filling and sealing machine are available to handle metal, plastic, aluminum and laminate tubes. This kind of tube filling and sealing machine is capable to handle different types of viscous and semi-viscous products like as cosmetics, ointment, toothpaste, foodstuff, pharmaceutics, and shaving creams and so on. Control with PLC based and touch screen control panel to get the world class performance.
Model: VK-TFS-100
Applicable Tube Materials: Plastic tubes, laminated tubes, aluminum tubes
Speed: 80-100 tubes/min
The above shows 5 typical toothpaste tube filling machines. VKPAK offers a wide range of toothpaste filling and sealing equipment, from semi-automatic to fully automatic, and from plastic tubes to laminated tubes and aluminum tubes. If you are looking for toothpaste packaging equipment, please contact us. Our engineers will recommend stable and reasonably priced equipment for you based on your tube and production capacity requirements.
We not only offer quality equipment, we listen, we adapt to your needs. We offer advice, we look for the best approach to your project. We recommend the most cost effective equipment without sacrificing quality. It is our responsibility to ensure that all our customers receive every attention to detail to make the installation successful, cost-efficient and profitable.
