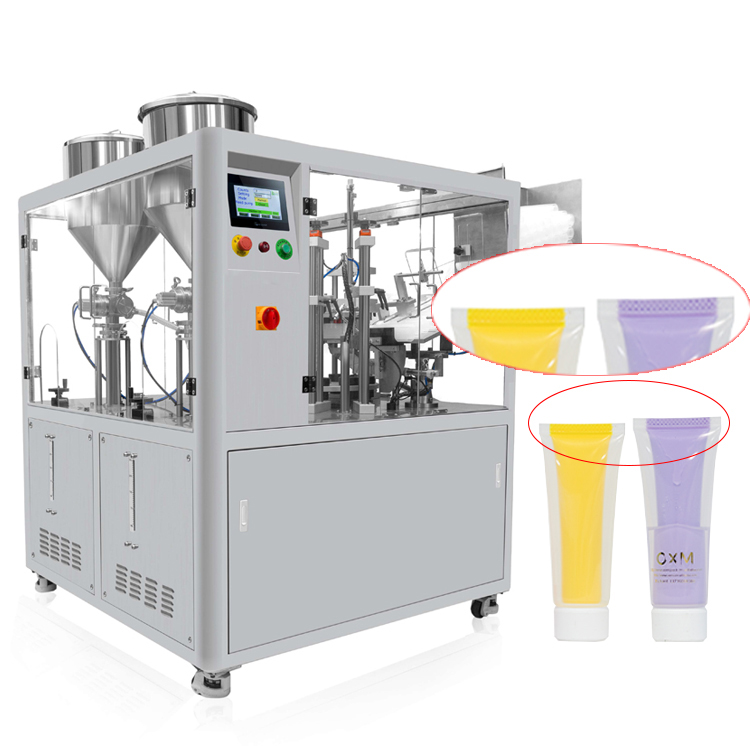

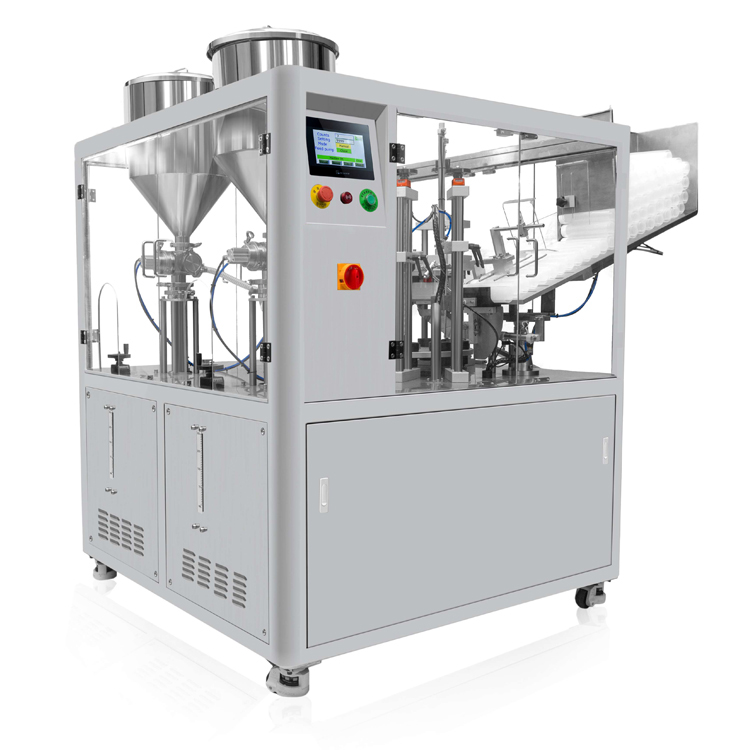

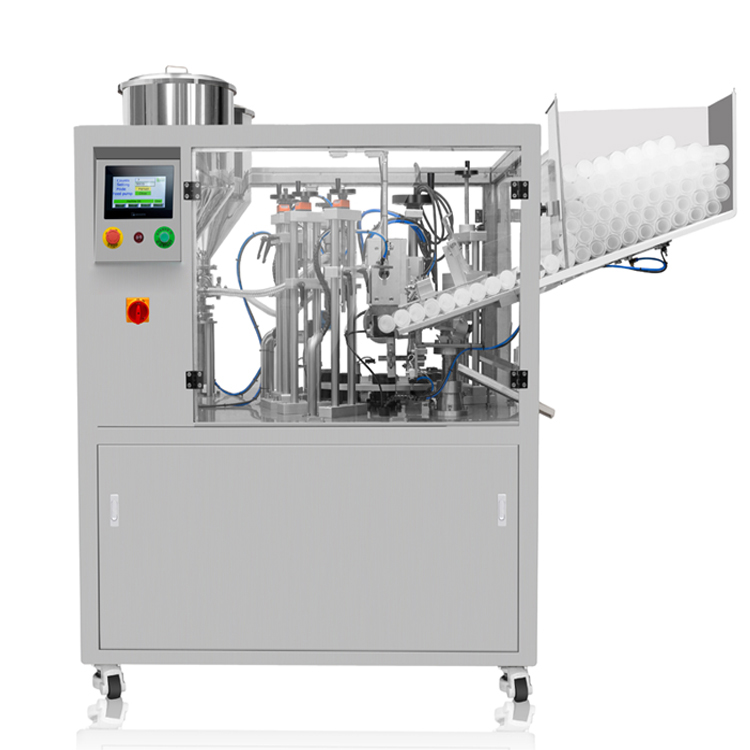

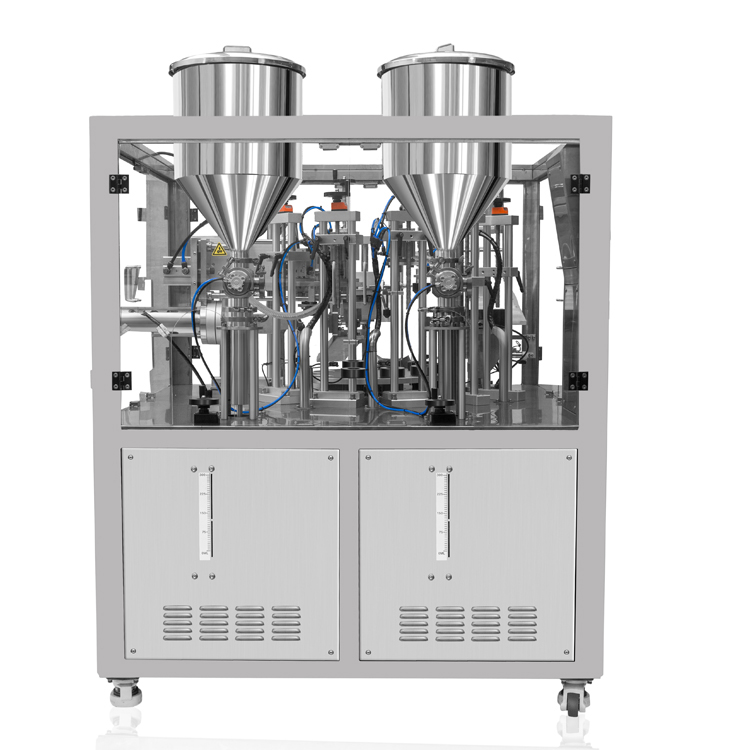

VK-TFS-009UDC Automatic Dual-Chamber Tube Filling And Sealing Machine
Specially designed for dual chamber tube / double tube / tube in tube filling and sealing. Widely used for cosmetics, pharmaceutical, chemical, food and other industries that have double formula in one tube. When squeese, two formula comes out at same time, like a candy / ice cream, double effect realize in one tube.
Sealing Method: Ultrasonic Sealing
Output Speed: 10-13 pieces/min

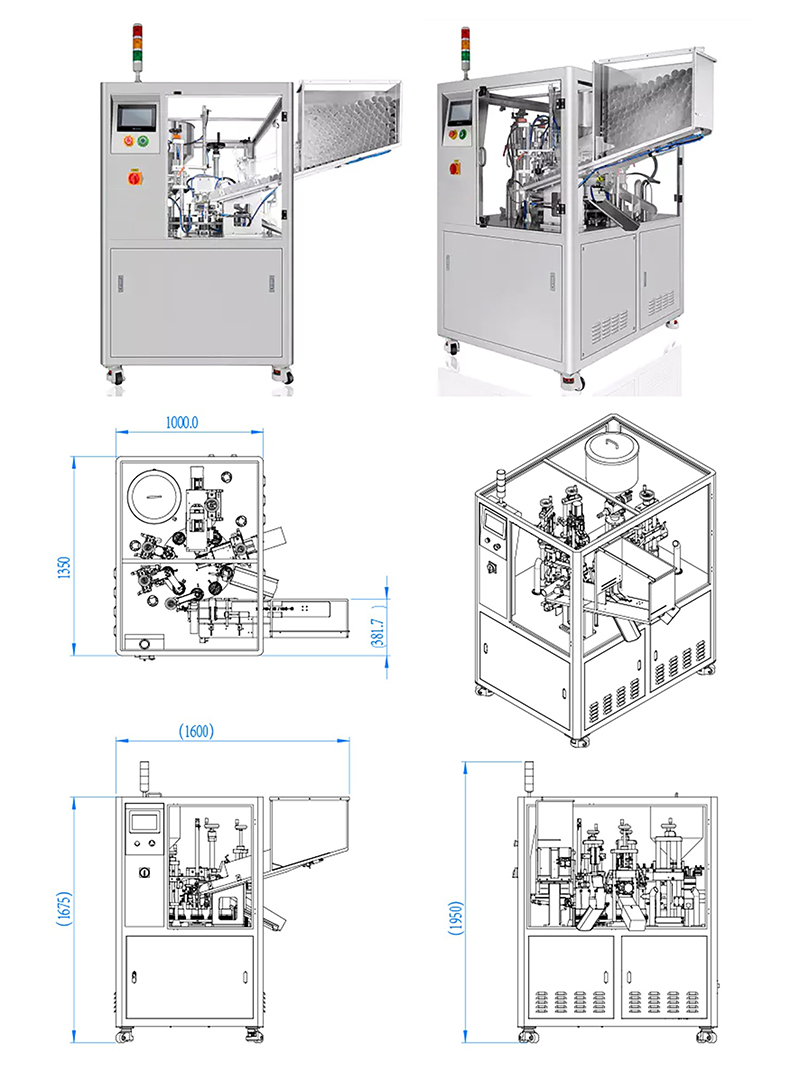

Dimension: L1850*W1400*H1800mm
Parameter
| Model | VK-TFS-009UDC |
| Ultrasonic Sealing Frequency | 20kHz |
| Power | 2.6Kw |
| Power Supply | AC220V/110V 1PH 50/60Hz |
| Filling Range | 10-120ml or 25-250ml for inner tube and outer tube |
| Filling Accuracy | ±1% |
| Capacity | 10-13 tubes/min |
| Sealing Dia. | 25-50mm (by changing tube holders and sealing mould) |
| Tube Height | 50-210mm (adjustable) |
| AirPressure | 0.5-0.6Mpa |
| Air Consumption | 0.38m3/min |
| Dimension | 1850*1400*1800mm |
| N.W | 530kgs |
- Easy to operate and maintain.
- Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
- Stainless steel machine body, strong and beautiful looks,
- Sealing mould can be customized according to customer requirements.
- Many size of tubes are available.
- Ultrasonic sealing machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
- Ultrasonic frequency can meet international standard, no harmful to human being or environment.
- Work in time, not need wait the heat time.
Features:

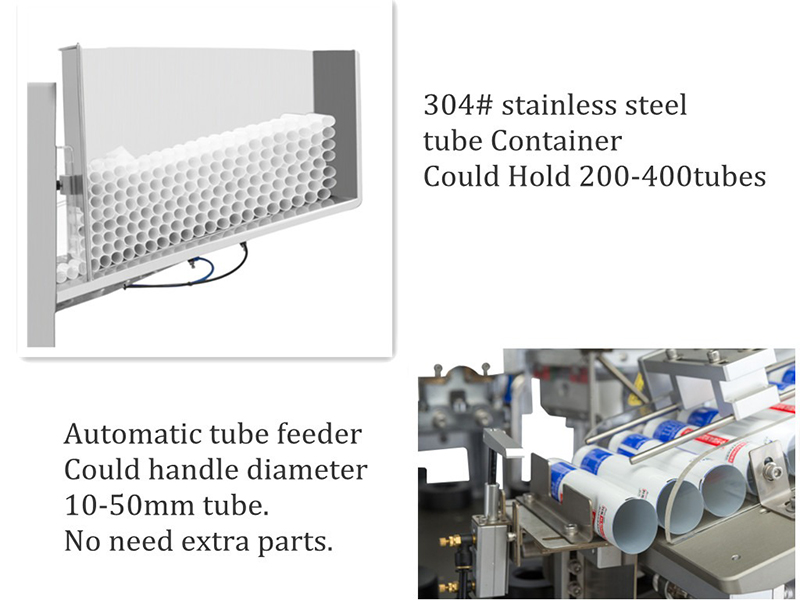

Machine can automatically process dual chamber tube feeding, auto rotate to fill outer tube, registration mark identifying, filling inner tube, sealing, end trimming, tube out feeding. The machine is fully automatic and can save labor cost and lower production cost as well as provide possibility of creative two formular products.
Machine is equipped with safety protection device and overload protection.

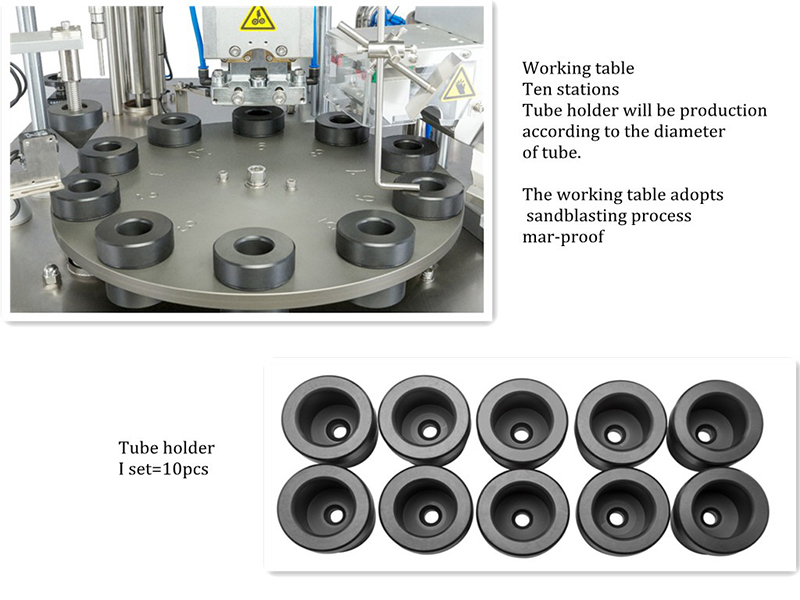

Cam indexing system could position precisely for ten working stations.

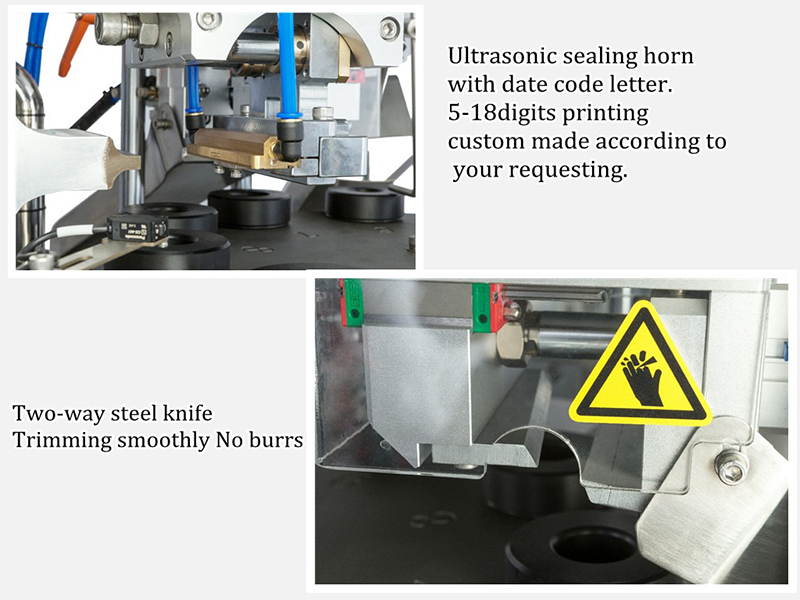

Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
Independent R&D for digital ultrasonic automatic tracking electrical control box. No need manual adjust the frequency. With power auto compensation function, the machine can avoid the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen and locate, solve the problem immediately.
Made of 304 stainless steel, acid and alkali resistance, corrosion resistance.
No tube, no fill, no tube, no seal function, reducing the machine and mould wear.

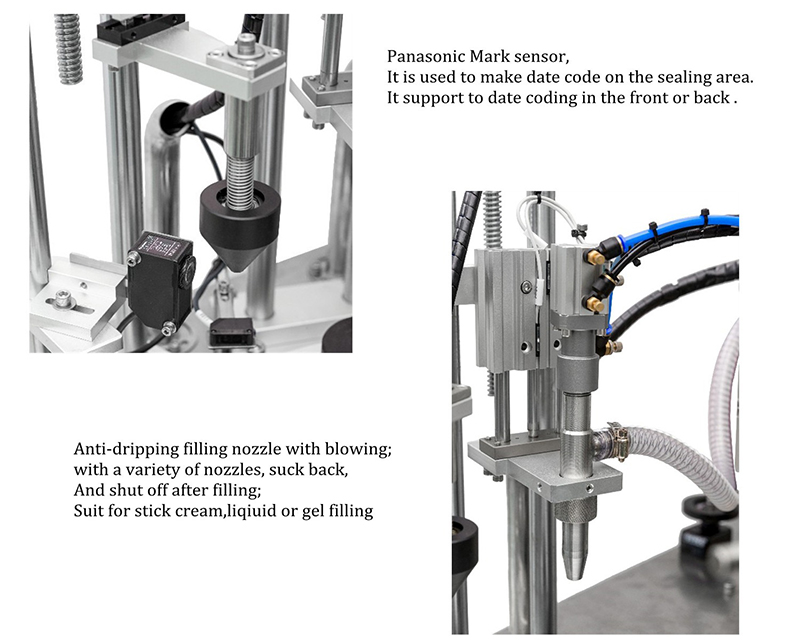

Adopts anti-dripping filling nozzle.

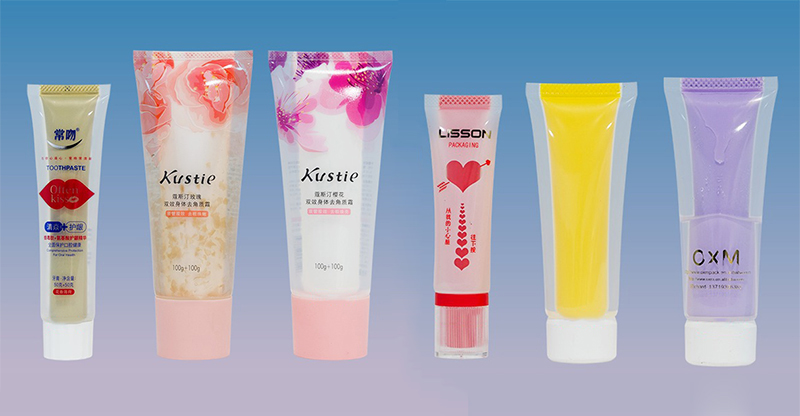

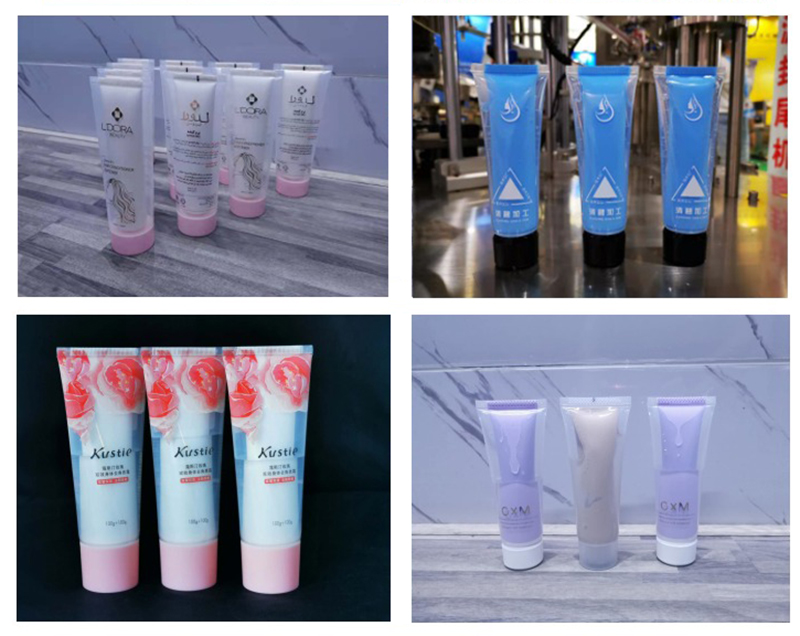

Application:
Widely used for cosmetics, chemical, pharmaceutical, food industry dual chamber / twin tubes two formular filling and sealing.
Machine Options:
Auto Refill pump

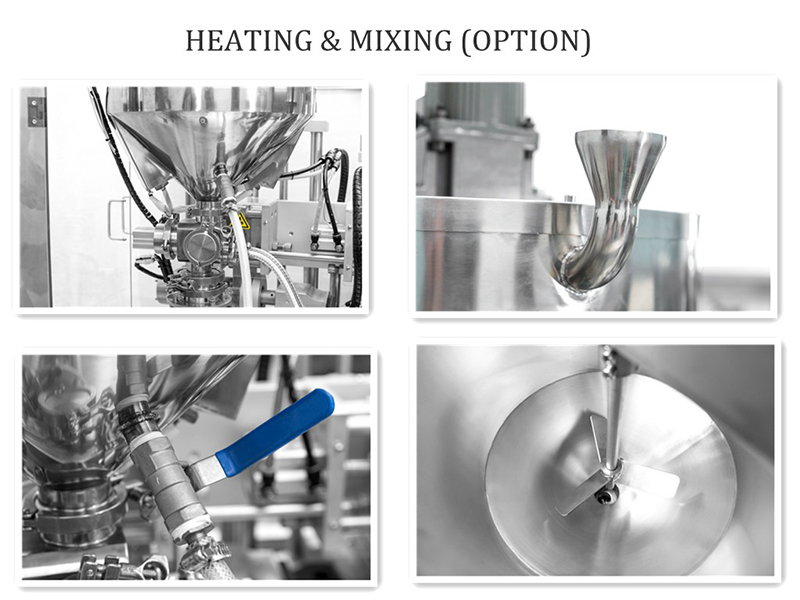

Heating and mixing system for material hopper
Air blow system for high viscous and sticky material
316L stainless steel contact parts

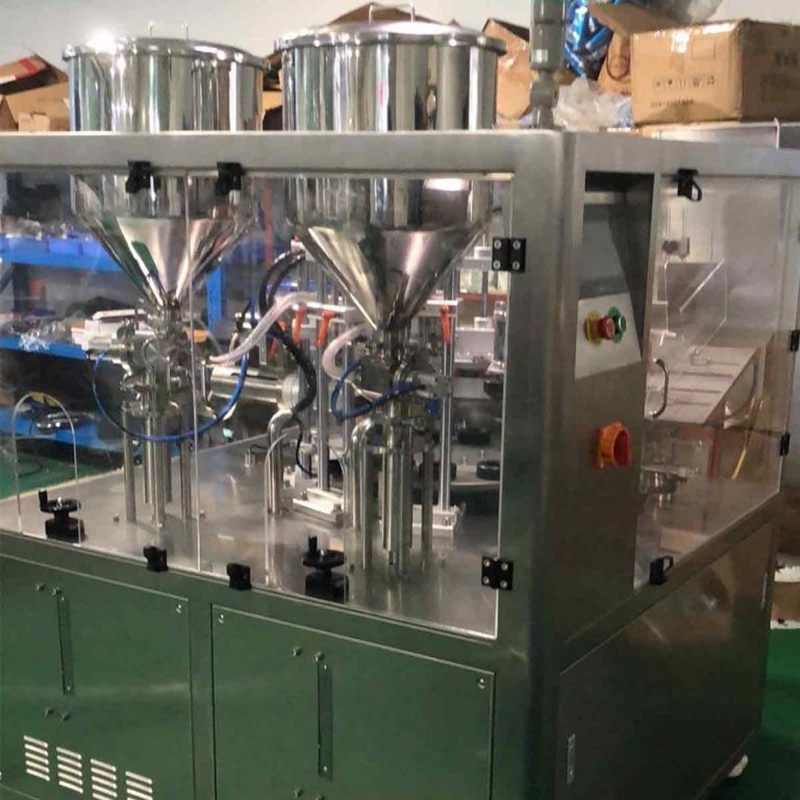

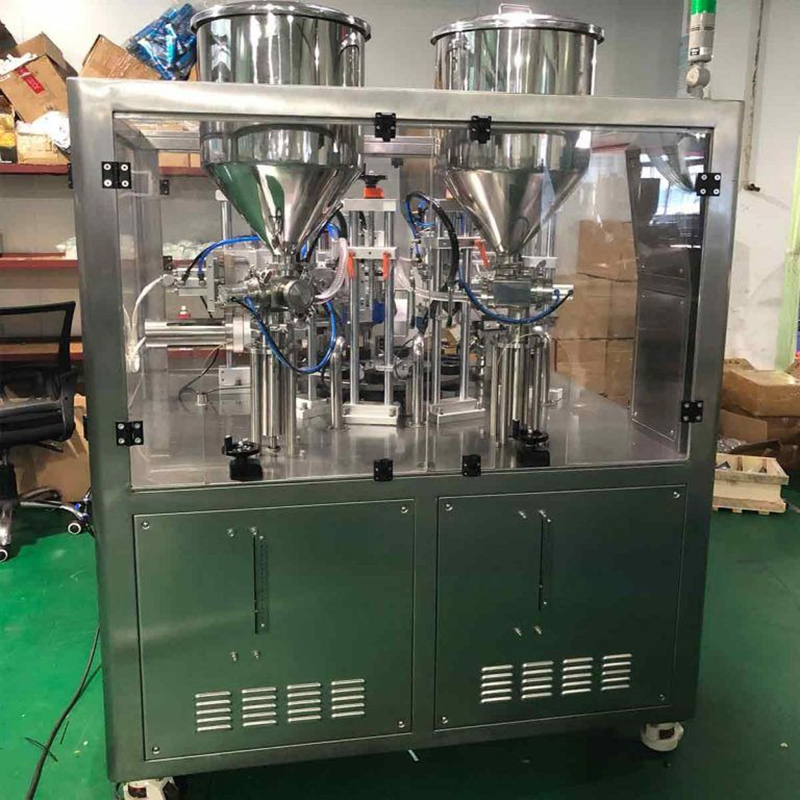

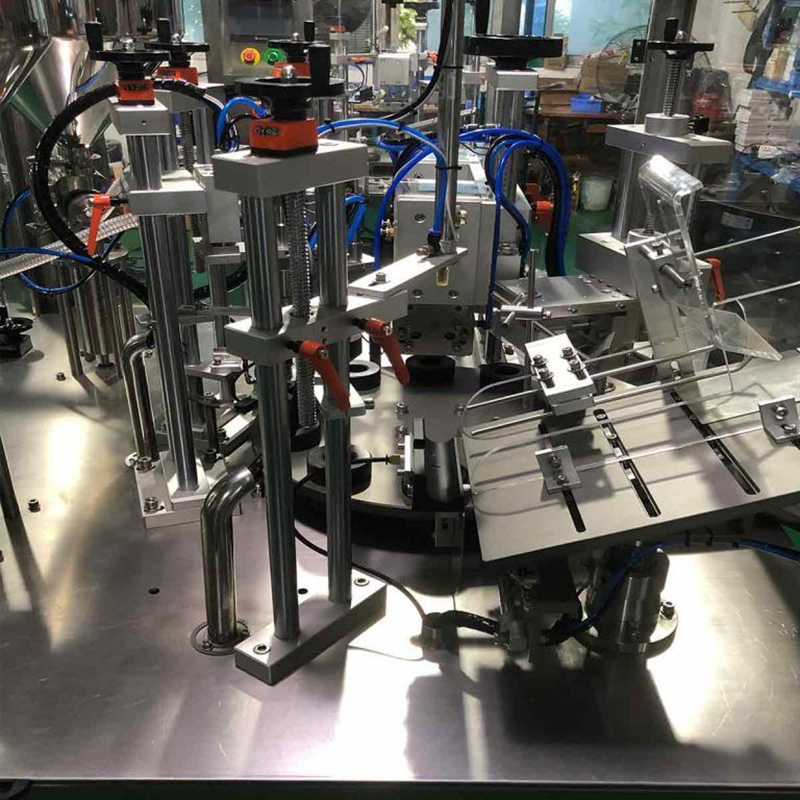

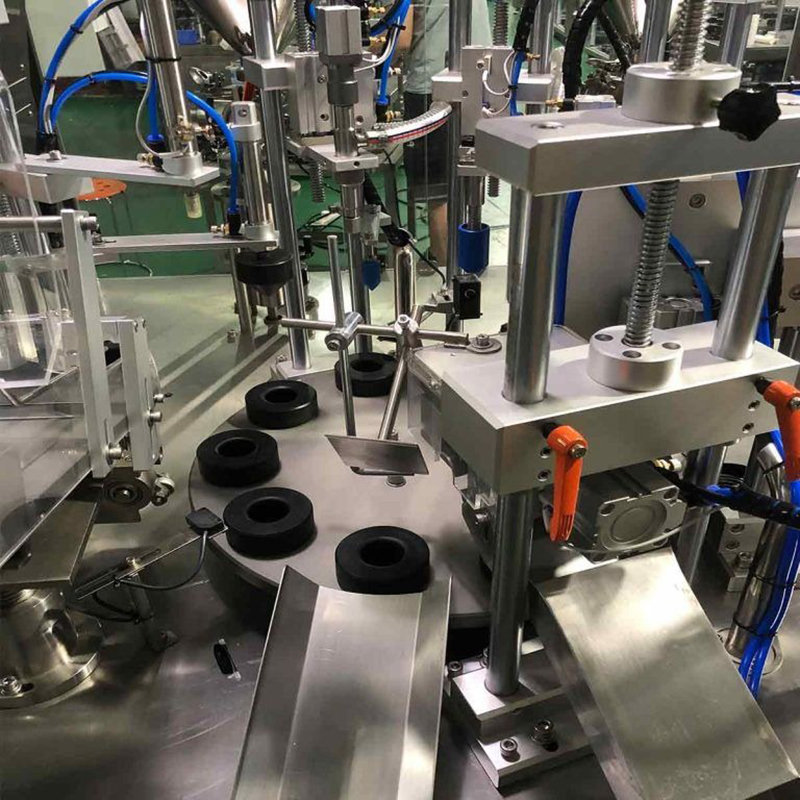

Machine Details:
