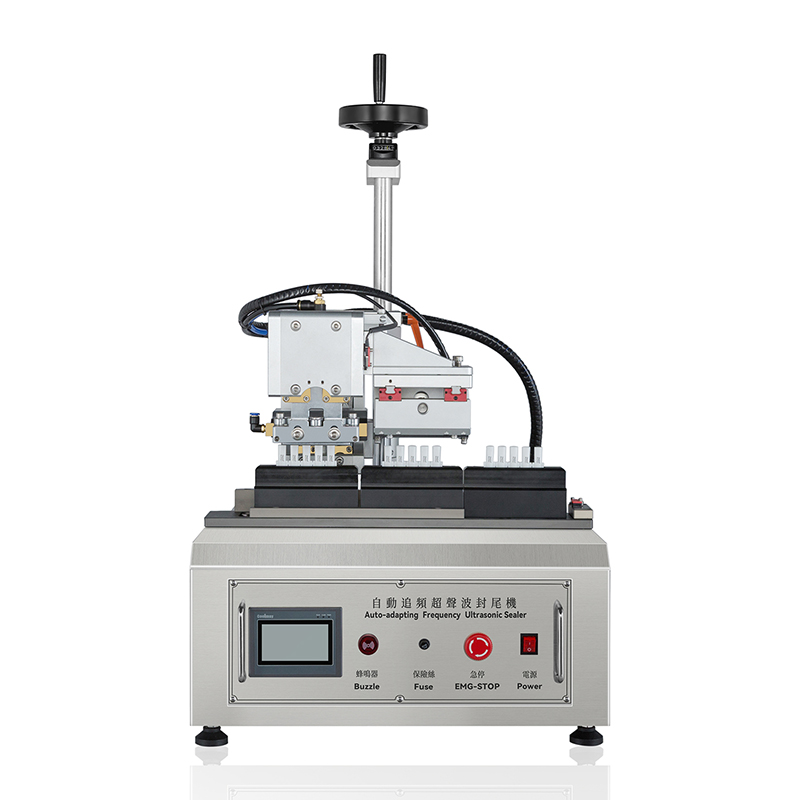

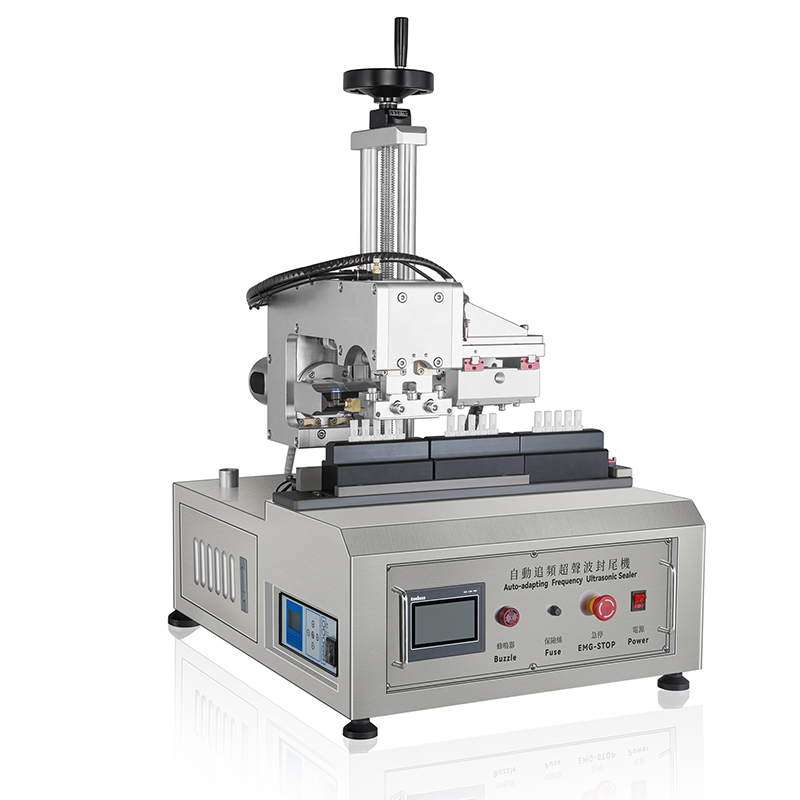

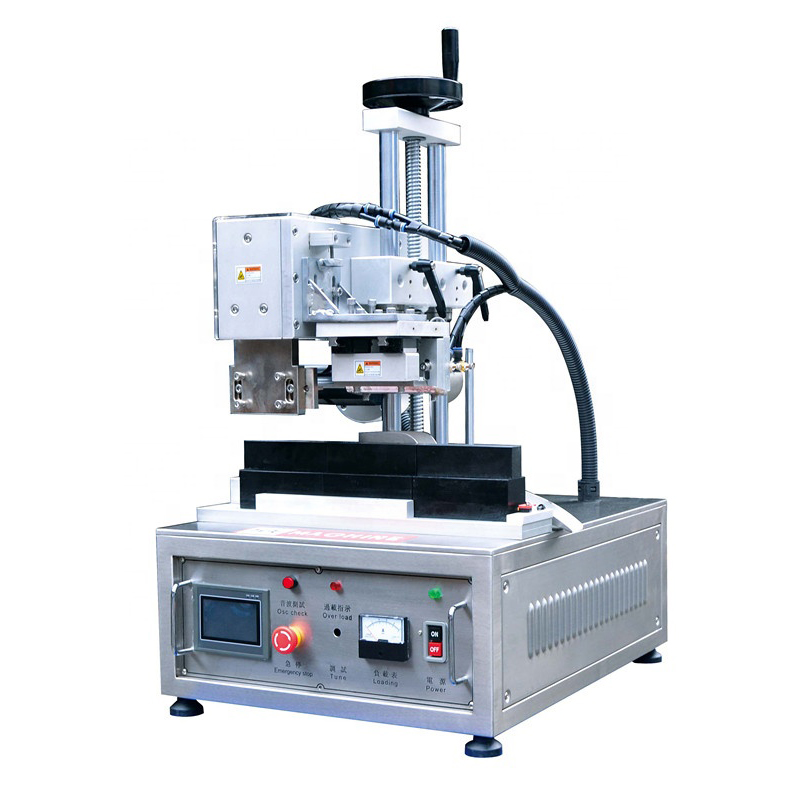

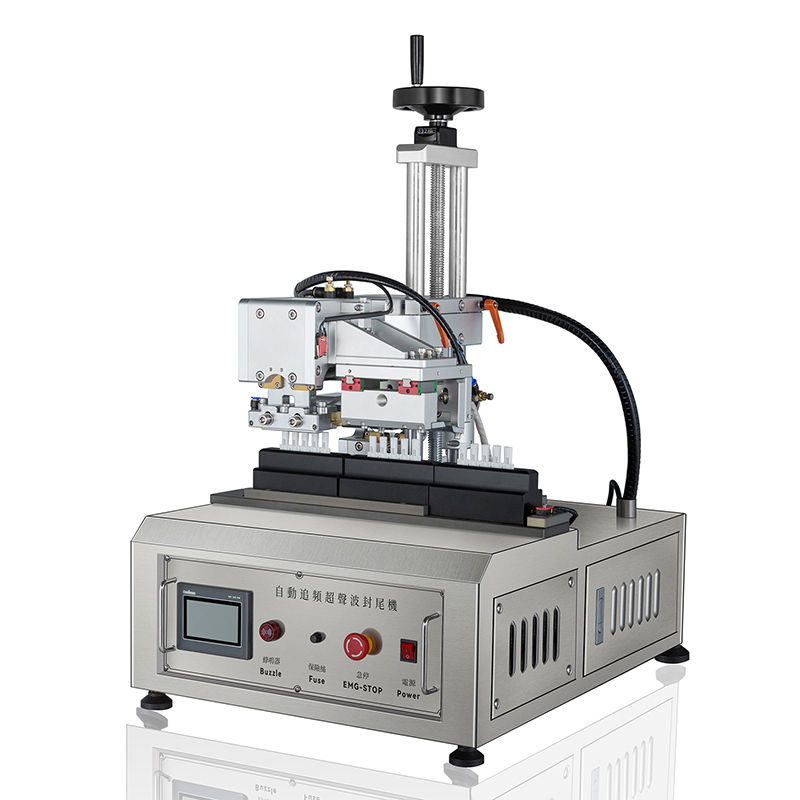

VK-UTS-003 Semi Automatic Ultrasonic Tube Sealer For Special Tube

This machine is designed for sealing monodose strip soft tube like cosmetic essence lotion etc. It is with the cutting function, can cut off the needless soft tube after sealing. It is widely used in daily chemical, cosmetic industries.

Sealing Method: Ultrasonic Sealing

Output Speed: 10-15 pieces/min

Dimension: L560*W537*H880mm

View Video Download PDF
This machine is used for sealing tubes. It adopts ultrasonic sealing. This machine is suitable for soft laminate tubes and plastic tubes which are 10-50mm in diameter. This machine is widely used in the food, cosmetics, and daily chemical industries.

Parameter

ModelVK-UTS-003
Frequency20kHz
Power2600W
Power SupplyAC220V/110V 1PH 50/60Hz
Capacity10-15pcs/min
Sealing Dia.5-50mm (Custom-made available)
Tube Height50-250mm
AirPressure0.5-0.6MPa
DimensionL560*W537*H880mm
N.W120kgs
  • The sealing height is adjustable with a knob. It is applicable to tubes that are 10-250mm in height.
  • It adopts ultrasonic to heat up rapidly and is durable with copper blocks.
  • The height of the cutter is also adjustable. It is made of alloy steel and it can automatically remove the tails to the trough.
  • The jig is customizable for the tubes that are 10-250mm in height and 10-50mm in diameter.

Features:

Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.

Manually feed the tube, machine could automatically start sealing and end trimming.

Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.

PLC with touch screen control system, providing friendly operation experience.

Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.

Suitable for strip tube, normal tube, curved tube or customer-made shape tube sealing and trimming.

No tube, no sealing and trimming function, reducing the machine and mould loss.

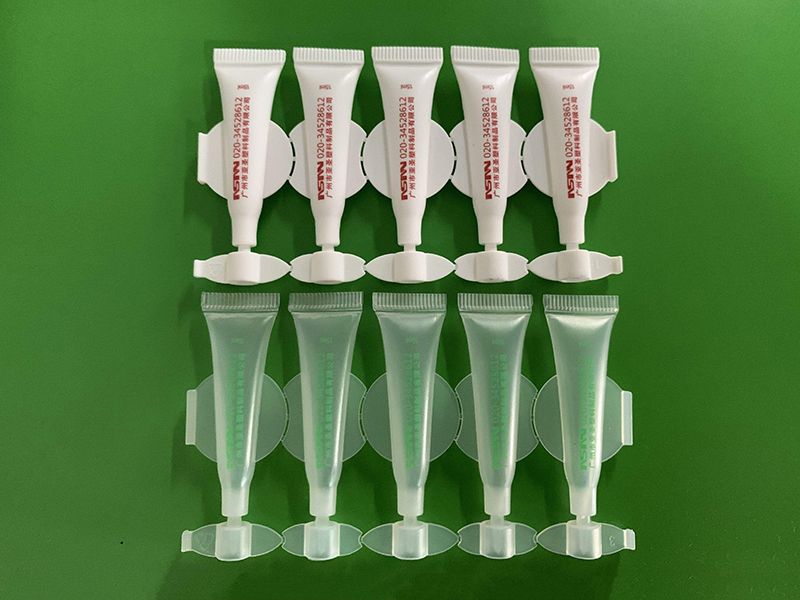

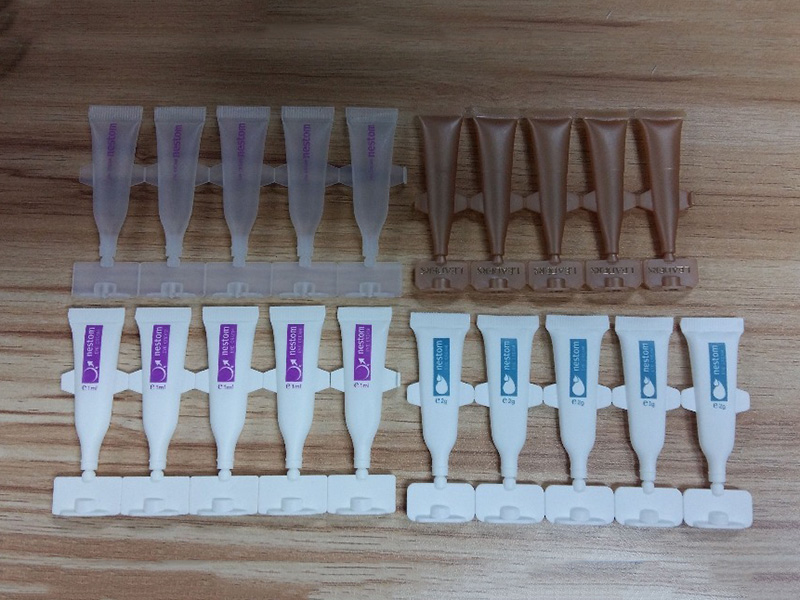

Application:

Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.

Machine Options:

Tube holders for different diameter

Data coding function(for some kind of tubes)
